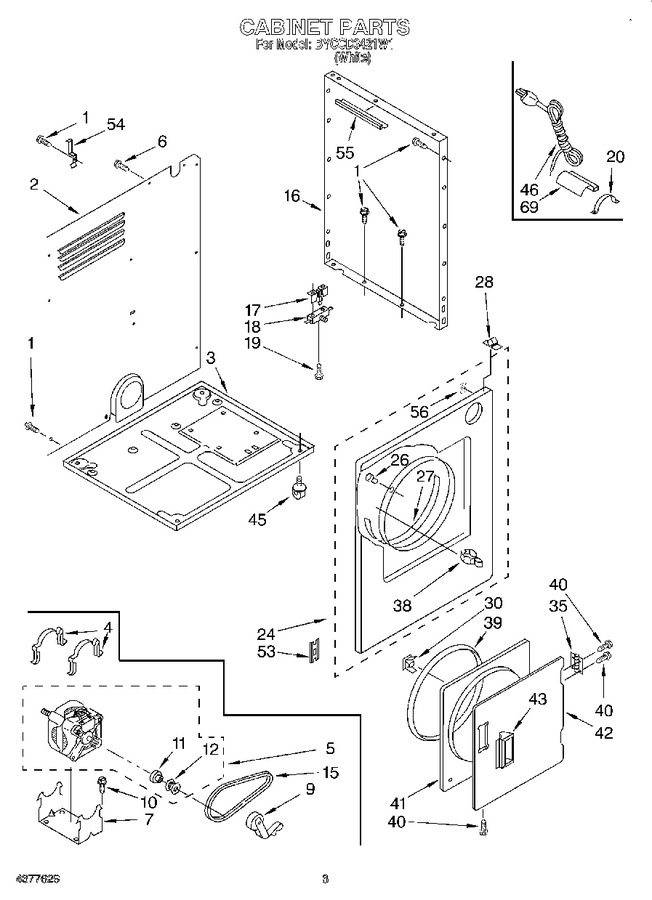

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 2 | 280048 | Panel, Rear (white) (Replaces: 347812) |
|
$ 285.16 | |||||
| 3 | WP348726 | Base Assembly (Replaces: 348726) |
|
$ 278.25 | |||||
| 4 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 5 | 279827 | Motor, 60 Hz. (Replaces: 3398046) |
|
Immediately | $ 191.95 | ||||
| 6 | W10850756 | Screw, Ground (Replaces: 697776) |
|
$ 7.76 | |||||
| 7 | 696541 | Base, Motor |
|
$ 93.20 | |||||
| 9 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 10 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 11 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 12 | 8066051 | Pulley, Motor 60 Hz. (Replaces: 3396426) |
|
$ 113.12 | |||||
| 15 | 3394652 | Belt, Drive |
|
Immediately | $ 52.32 | ||||
| 16 | 348705 | Panel, Side (2) (white) |
|
$ 115.02 | |||||
| 17 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.09 | ||||
| 18 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 19 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 20 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.09 | |||||
| 24 | 280044 | Front Panel (white) (Replaces: 693943) |
|
$ 319.20 | |||||
| 26 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 20.65 | |||||
| 27 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 28 | WP345670 | Lock, Top (Replaces: 345670) |
|
Immediately | $ 7.70 | ||||
| 30 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 35 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 8.42 | |||||
| 38 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 39 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 53.63 | |||||
| 40 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.19 | |||||
| 41 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 197.58 | |||||
| 42 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 147.39 | ||||
| 43 | WP686711 | Handle, Door (white) (Replaces: 686711) |
|
Immediately | $ 7.95 | ||||
| 45 | 279127 | Caster (4) (Replaces: 660719) |
|
$ 73.78 | |||||
| 46 | 4319443 | Cord, Power |
|
- | |||||
| 53 | W10854425 | Clip (2) (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 54 | 345790 | Bracket, Power Cord (2) |
|
- | |||||
| 55 | 9830279 | Protector, Support |
|
- | |||||
| 56 | WP98234 | Clip, Panel (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 69 | 686770 | Protector Support |
|
- |
