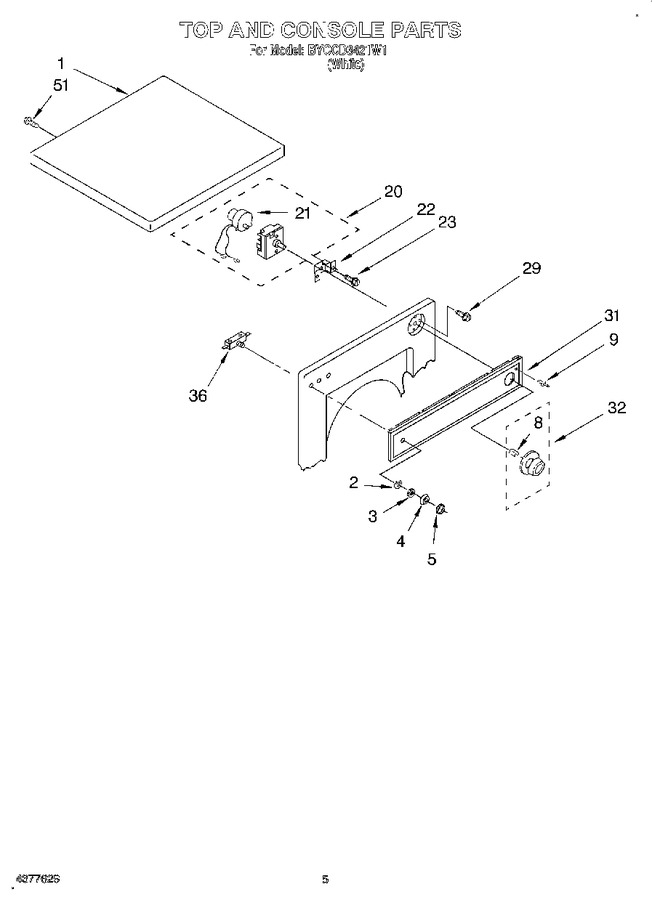

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345703		Top (white)				$ 249.12
2	688193		Lockwasher		Appelez-nous	-
3	9831122		Nut, Hex		Appelez-nous	-
4	345530		Ring, Trim		Appelez-nous	-
5	688041		Nut, Knurled		Appelez-nous	-
8	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
9	307563		Rivet, Pop (2)		Appelez-nous	-
20	WP8563881		Timer, 60 Hz.   (Replaces: 9830837)				$ 350.47
22	348171		Bracket, Timer		Appelez-nous	-
23	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
31	9831125		Panel, Control		Appelez-nous	-
32	9831126		Timer Knob & Dial		Appelez-nous	-
36	689038		Switch, Push-to-start		Appelez-nous	-
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
