SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

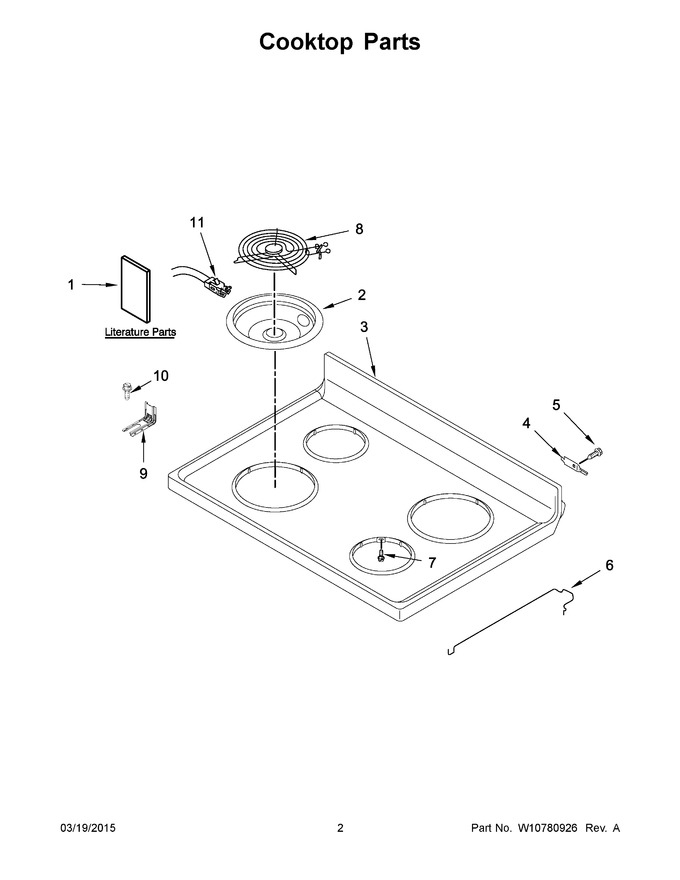

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	WPW10196406		Bowl, Drip (6") (right Front And Left Rear)   (Replaces: W10196406)			Immediately	$ 13.39
3	8195532		Cooktop (white)   (Replaces: 3186231)				$ 419.31
4	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	WP3195812		Rod, Support   (Replaces: 3195812)			Immediately	$ 8.73
7	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
8	W11168414		Element, Surface (6") (right Front And Left Rear)   (Replaces: W10259870)			Immediately	$ 154.49
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
10	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
11	814399		Receptacle, Element			Immediately	$ 43.19
1A	W10452920		Tech Sheet		Appelez-nous	-
1B	W10366146		Use And Care Guide		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2A	WPW10196405		Bowl, Drip (8") (left Front And Right Rear)   (Replaces: W10196405)			Immediately	$ 17.29
3A	8195534		Cooktop (black)   (Replaces: 3186233)				$ 509.93
8A	W11161939		Element, Surface (8") (left Front And Right Rear)   (Replaces: W10259867)			Immediately	$ 168.63
NI	W10297387		Harness, Cooktop		Appelez-nous	-
NI	W10322608		Clip, Harness		Appelez-nous	-
NI	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10453872		Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
