01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

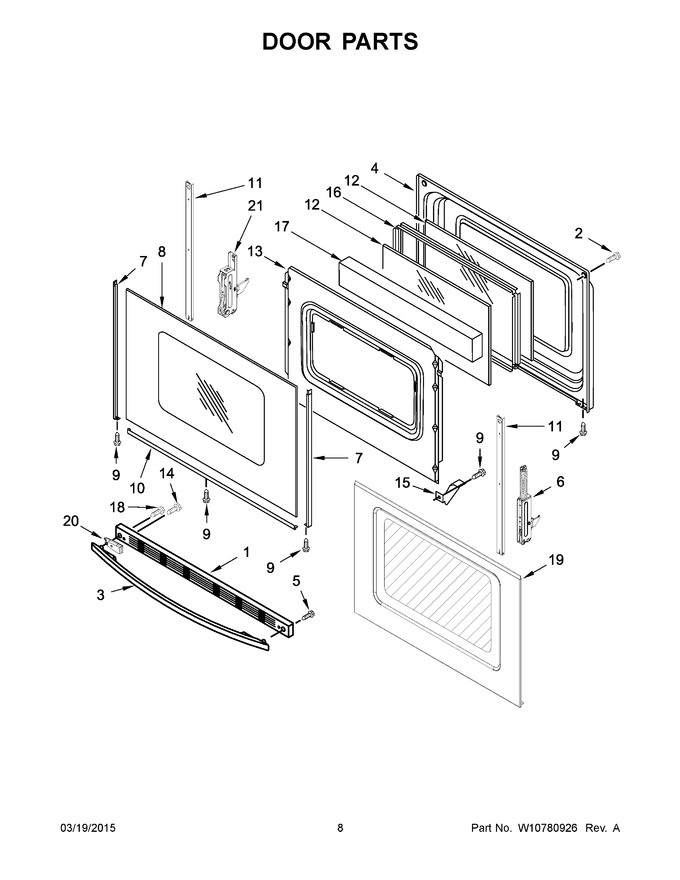

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 8.14 | ||||
| 3 | W10300489 | Handle, Door (white) |
|
Immediately | $ 244.88 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 6 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 7 | WP8523172 | Trim, Door (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 8 | WPW10409945 | Glass, Door (white) (Replaces: W10409945) |
|
Immediately | $ 248.79 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 10 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 11 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 27.68 | ||||
| 12 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 13 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 14 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 8.79 | ||||
| 15 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 18 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 19 | W10330077 | Glass Assembly, Outer Door (stainless) |
|
$ 202.23 | |||||
| 20 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 80.75 | |||||
| 21 | WPW10299227 | Hinge, Passive (without Spring) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 10A | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 1A | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 3A | W10300490 | Handle, Door (black) |
|
Immediately | $ 156.75 | ||||
| 3B | WPW10618239 | Handle, Door (stainless) (Replaces: W10618239) |
|
Immediately | $ 175.54 | ||||
| 7A | WP8523166 | Trim, Door (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 7B | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 7C | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 8A | WPW10409946 | Glass, Door (black) (Replaces: W10409946) |
|
$ 319.25 |
