01 - Cover Sheet
02 - Cooktop Parts

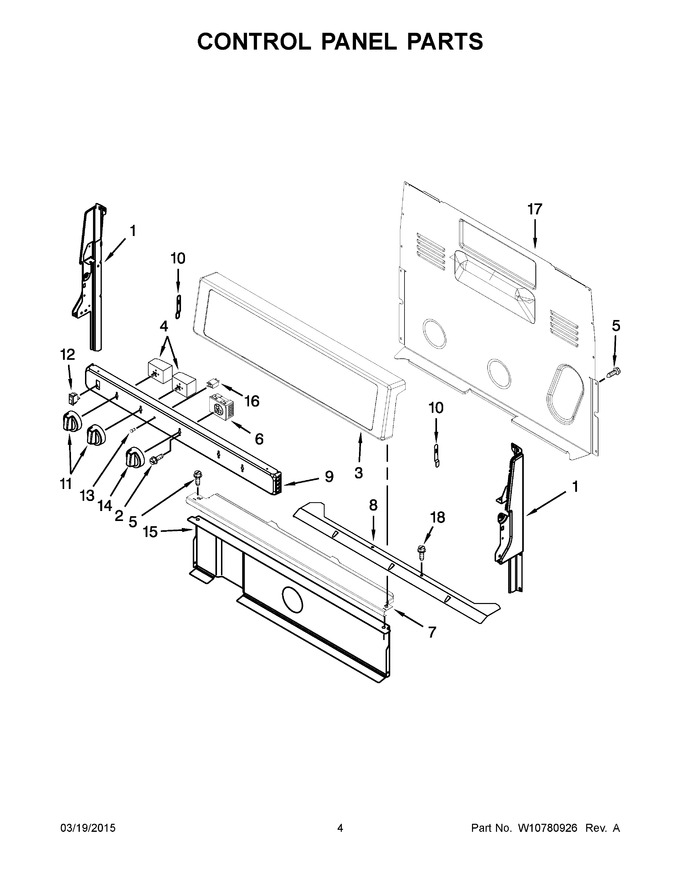

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 3 | W10370110 | Panel, Console (white) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (left Front And Right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10363198 | Switch, Selector (Replaces: W10363198) |
|
$ 223.83 | |||||
| 7 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 8 | W10356438 | Shield, Wiring |
|
- | |||||
| 9 | W10356276 | Panel, Manifold (white) |
|
- | |||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | W10676224 | Knob, Infinite (white) |
|
- | |||||
| 12 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 13 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 14 | W10676226 | Knob, Thermostat (white) |
|
- | |||||
| 15 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 16 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 17 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 18 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11A | W10676223 | Knob, Infinite (black) |
|
- | |||||
| 12A | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 93.95 | |||||
| 14A | W10676225 | Knob, Thermostat (black) |
|
- | |||||
| 1A | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1B | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1C | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 3A | W10370109 | Panel, Console (black) |
|
- | |||||
| 3B | W10339409 | Panel, Console (stainless) |
|
- | |||||
| 4A | 5500-287 | Switch, Infinite (right Front And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 9A | W10356277 | Panel, Manifold (black) |
|
- |
