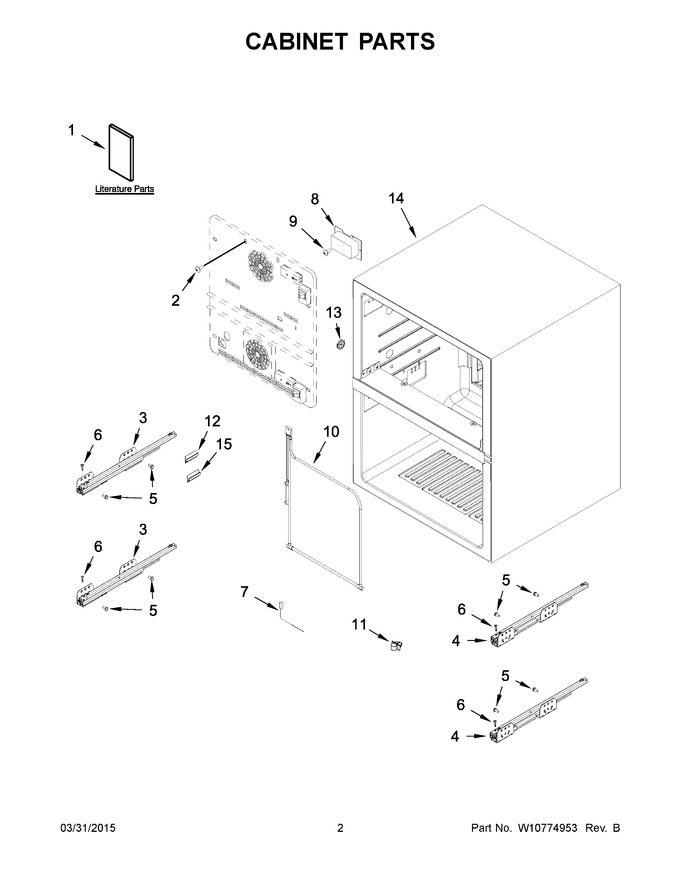

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741583		Use & Care Guide		Appelez-nous	-
2	W10774183		Screw		Appelez-nous	-
3	W10621521		Rail Assembly, Left Hand				$ 364.94
4	W10621523		Rail Assembly, Right Hand				$ 330.09
5	W10621524		Screw				$ 16.10
6	W10204809		Screw		Appelez-nous	-
7	W11573590		Defrost Sensor   (Replaces: W10772858)				$ 66.17
8	W10788689		Cover		Appelez-nous	-
9	4344826		Screw				$ 16.70
10	W10204621		Thermal Fuse Assembly				$ 178.10
11	W10238022		Clip, Bushing		Appelez-nous	-
12	W10304193		Clip, Defrost Heater		Appelez-nous	-
13	W10621514		Liner Bushing				$ 31.71
14	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
15	W10721447		Wire Support Tape		Appelez-nous	-
1A	W10772894		Wiring Diagram		Appelez-nous	-
1B	W10788691		Energy Guide		Appelez-nous	-
