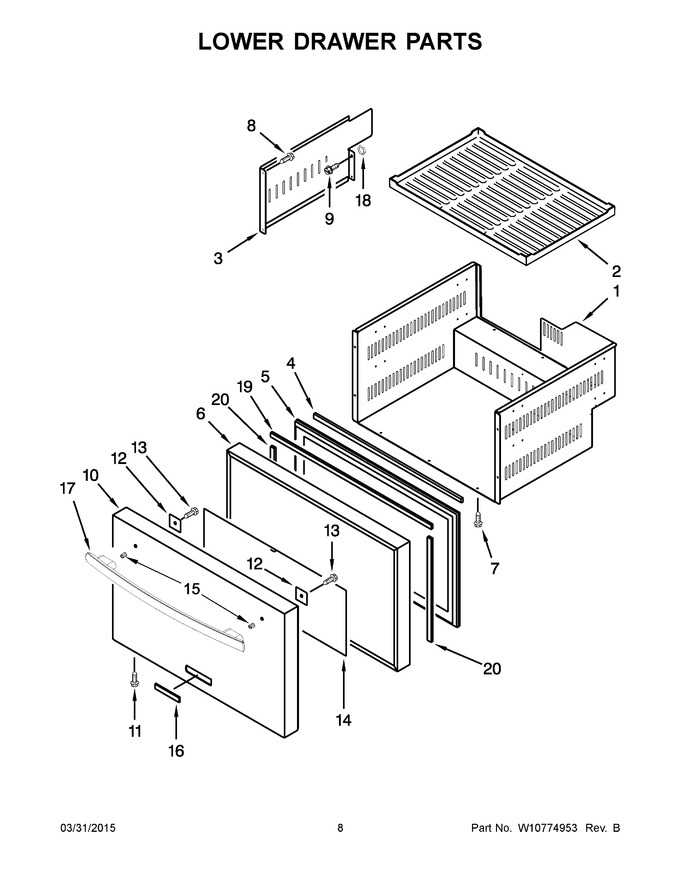

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10772903		Bottom Drawer Box Assembly		Appelez-nous	-
2	W10622026		Mat, Lower Drawer				$ 185.02
3	W10796446		Bottom Drawer Partition   (Replaces: W10772905)		Appelez-nous	-
4	W10281317		Cold Air Seal		Appelez-nous	-
5	W11625065		Gasket   (Replaces: W10775534)				$ 108.18
6	W10622043		Door Assembly, Lower		Appelez-nous	-
7	W10204808		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10622009		Wrap, Stainless Steel				$ 191.43
11	W10319185		Screw		Appelez-nous	-
12	W10299088		Plate, Door Handle		Appelez-nous	-
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
14	W10204867		Wrap Spacer		Appelez-nous	-
15	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 19.33
16	WPW10214168		Name Plate   (Replaces: W10292471)				$ 85.95
17	W10622019		Handle			Immediately	$ 360.90
18	W10204920		Nut		Appelez-nous	-
19	W10204889		Door Gasket, Long		Appelez-nous	-
20	W10204897		Door Gasket, Short		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10788702		Overlay Installation Kit				$ 107.70

    View Diagram in Separate Window       Print Part List
