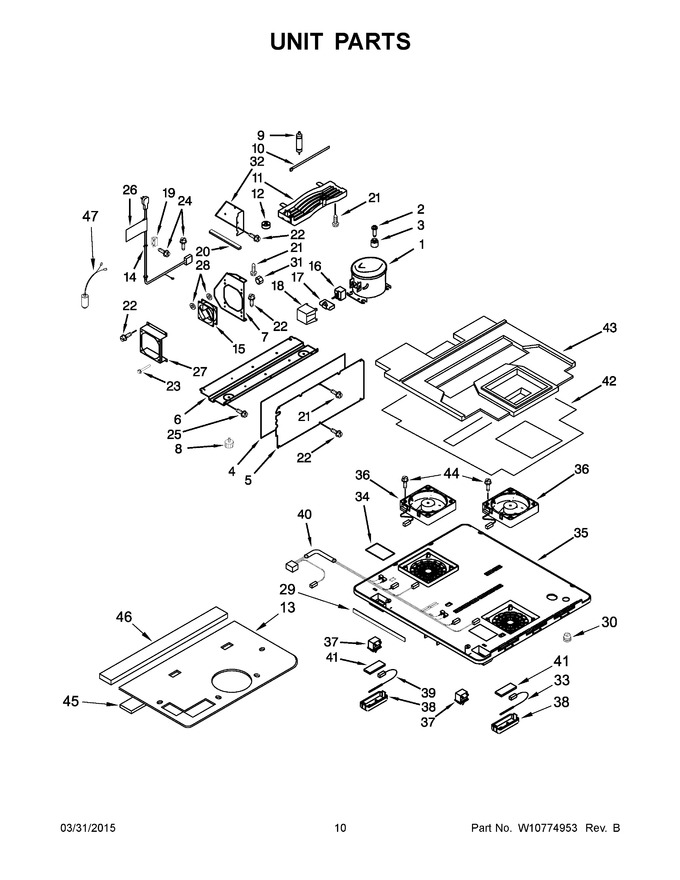

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10772872		Compressor   (Replaces: W10772872)			Immediately	$ 528.01
2	W10772873		Bolt		Appelez-nous	-
3	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 8.47
4	W10778963		Insulation, Rear Cover		Appelez-nous	-
5	W10788700		Cover, Rear		Appelez-nous	-
6	W10772877		Cabinet Base Plate		Appelez-nous	-
7	W10204674		Air Baffle				$ 127.68
8	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 19.03
9	W10163273		Drier				$ 103.41
10	4344829		Tie, Cable		Appelez-nous	-
11	W11506518		Drain Tray   (Replaces: W10772879)				$ 102.83
12	W10163276		Trap, Drain				$ 90.13
13	W10772921		Insulation, Combo		Appelez-nous	-
14	WPW10204676		Cord, Power   (Replaces: W10204676)				$ 113.02
15	W10772882		Condenser Dc Motor				$ 347.43
16	W10772884		Overlay Relay				$ 164.04
17	W10287848		Ptc Thermister				$ 173.32
18	W10772885		Cover, Relay		Appelez-nous	-
19	W10270517		Clamp, Cord				$ 79.51
20	4344907		Trim, Edge		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344832		Screw		Appelez-nous	-
23	W10772886		Screw		Appelez-nous	-
24	4344826		Screw				$ 16.70
25	4344797		Screw		Appelez-nous	-
26	4344913		Warning Label		Appelez-nous	-
27	W11506521		Fan Cover, Condenser   (Replaces: W10772889)		Appelez-nous	-
28	W10204688		Fan Bushing		Appelez-nous	-
29	W10304189		Seal, Mullion		Appelez-nous	-
30	W10304006		Bushing, Cover		Appelez-nous	-
31	W10772890		Nut		Appelez-nous	-
32	4344773		Bracket, Defrost Timer		Appelez-nous	-
33	W10772917		Temperature Sensor				$ 134.99
34	W10205062		Terminal Protector		Appelez-nous	-
35	W10772915		Cover, Fan				$ 92.40
36	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 313.91
37	W10721454		Door Switch				$ 41.81
38	W10775535		Sensor Case   (Replaces: W10778979)		Appelez-nous	-
39	W11238391		Temperature Sensor   (Replaces: W10772916)			Immediately	$ 130.99
40	W10772918		Harness, Fan Cover				$ 130.53
41	W10204948		Sensor Case Seal		Appelez-nous	-
42	W10772920		Plate Cover		Appelez-nous	-
43	W10772919		Insulation, Fan Cover		Appelez-nous	-
44	W10205061		Screw		Appelez-nous	-
45	W10772922		Seal, Cold Air Stop		Appelez-nous	-
46	W10788704		Seal		Appelez-nous	-
47	W10772895		Running Capacitor				$ 135.88
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10266810		Aluminum Tape			Immediately	$ 77.08
