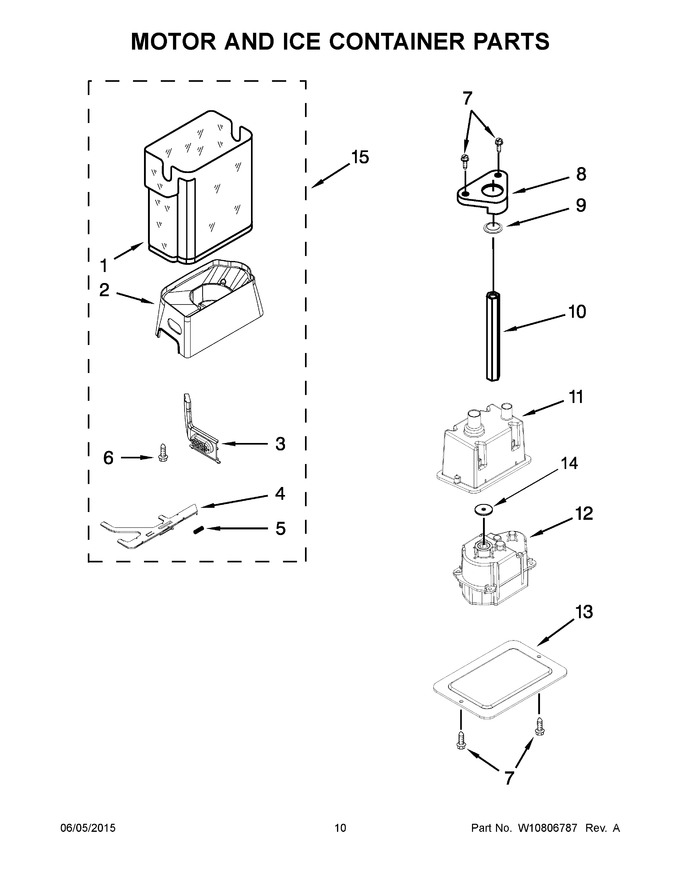

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222965		Bin, Ice   (Replaces: 2222965)				$ 227.45
2	WPW10134774		Bin, Crusher   (Replaces: W10134774)				$ 157.09
3	W10749207		Button, Bin				$ 69.70
4	W10134783		Latch, Bin				$ 105.17
5	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
6	2198671		Screw (stainless)				$ 10.92
7	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
8	WP2188919		Clip, Shaft   (Replaces: 2188919)				$ 7.55
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
10	W11841865		Shaft, Drive   (Replaces: 2318082)			Immediately	$ 115.26
11	W11404931		Enclosure, Motor   (Replaces: 2318011)			Immediately	$ 68.51
12	2315547		Motor, Dispenser		Appelez-nous	-
13	2318028		Cover				$ 107.79
14	WPW10254073		Washer   (Replaces: W10254073)			Immediately	$ 10.61
15	W10769115		Assembly, Ice Container				$ 360.22
