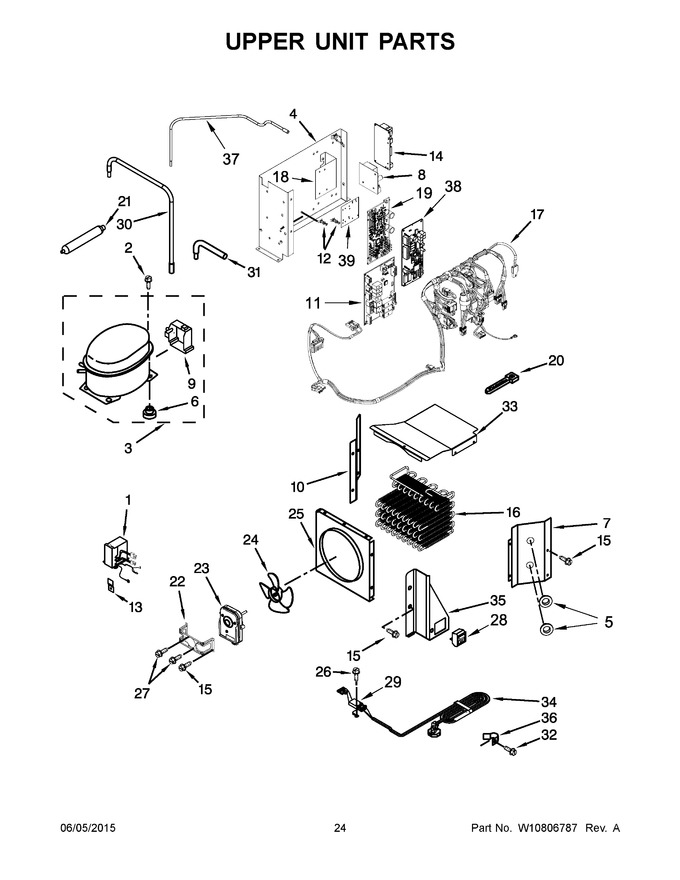

13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11573593		Assembly, Inverter Box   (Replaces: W10645666)				$ 223.37
2	876811		Screw   (Replaces: 489373)				$ 7.79
3	W10720770		Compressor   (Replaces: W10653005)				$ 903.29
4	W10550831		Housing, Control Board Mounting		Appelez-nous	-
5	W10587113		Grommet		Appelez-nous	-
6	876811		Grommet   (Replaces: 1100826)				$ 7.79
7	WPW10525179		Support, Condenser (right Hand)   (Replaces: W10525179)				$ 110.88
8	WP2259350		Board, Power Supply   (Replaces: 2259350)				$ 145.35
9	2215676		Cover, Terminal				$ 94.36
10	WPW10525177		Support, Condenser (left Hand)   (Replaces: W10525177)				$ 110.88
11	WPW10200659		Control, Electronic   (Replaces: W10200659)			Immediately	$ 355.73
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	WPW10624574		Supply, Power   (Replaces: W10624574)			Immediately	$ 231.58
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	W10591457		Condenser				$ 248.55
17	W10775849		Assembly, Unit Wire				$ 358.14
18	W10761479		Plate, Circuit Board		Appelez-nous	-
19	W10830288		Led Control   (Replaces: W10635302)			Immediately	$ 493.01
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	W10414681		Bracket, Fan Motor				$ 79.53
23	W11578915		Motor, Condenser   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
25	W10415670		Orifice, Fan		Appelez-nous	-
26	00487294		Screw   (Replaces: 487294)				$ 175.09
27	WP8533993		Screw   (Replaces: W10146359)				$ 11.21
28	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
29	2310195		Assembly, Jumper Wire (power Switch To Power Cord)				$ 123.20
30	W10624944		Tube, Drier Transition				$ 35.25
31	W10528578		Tube, Process				$ 39.82
32	W11624204		Screw   (Replaces: 486194)				$ 14.72
33	W10525175		Cover, Condenser Support				$ 72.38
34	2310196		Cord, Power			Immediately	$ 88.52
35	W10321055		Bracket, Control Assembly		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 14.06
37	W10648264		Tube, Heat Loop Transition				$ 77.11
38	WP2318054		Control, Electronic   (Replaces: 2318054)			Immediately	$ 314.13
39	W10770059		Plate, Circuit Board (top)				$ 144.74
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 6.75 Oz. (r-134a)		Appelez-nous	-
