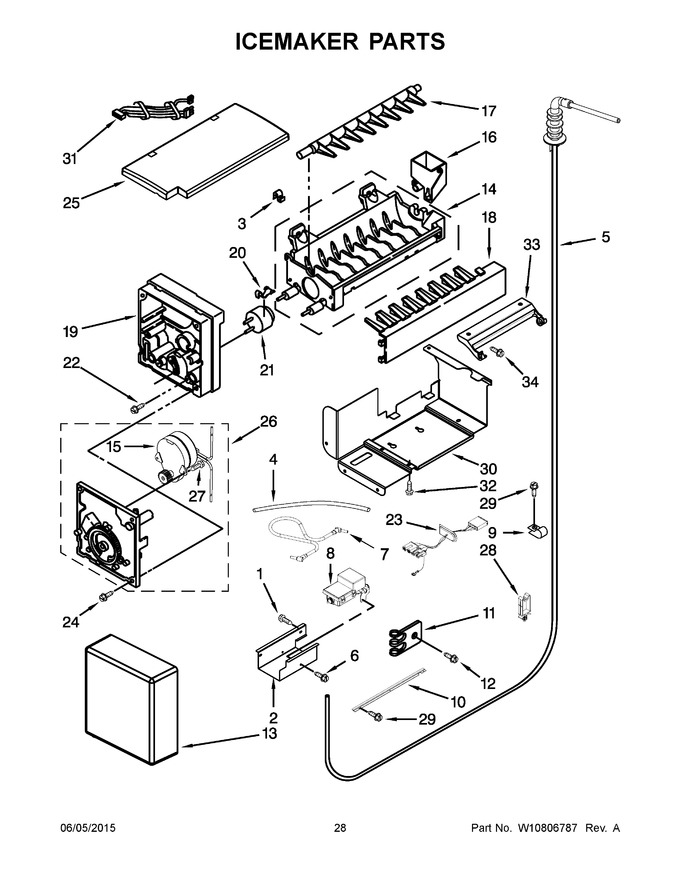

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
2	2320601		Shield, Water Valve				$ 120.16
3	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 11.10
4	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 67.89
5	W11212166		Fitting, Water   (Replaces: W10357286)			Immediately	$ 40.93
6	00487294		Screw   (Replaces: 487294)				$ 175.09
7	W11533506		Tube, Filter Outlet   (Replaces: W10683737)			Immediately	$ 33.15
8	WPW10159842		Valve, Inlet   (Replaces: W10159842)			Immediately	$ 336.00
9	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
10	2320559		Support, Valve				$ 88.79
11	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
12	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
13	WPW10289690		Cover, Icemaker   (Replaces: W10289690)			Immediately	$ 8.82
14	WPW10190929		Assembly, Mold And Heater (also Order 542638)   (Replaces: 628228)				$ 233.15
15	N/P		Motor (not Serviced, Order Item 26)		Appelez-nous	-
16	W10377998		Cup, Fill				$ 83.03
17	WP627843		Ejector   (Replaces: 627843)				$ 87.78
18	WPW10272161		Stripper, Ice   (Replaces: W10272161)				$ 72.82
19	WP2195914		Support, Housing   (Replaces: 2194712)				$ 109.80
20	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.60
21	WP627985		Thermostat   (Replaces: 627985)				$ 114.64
22	W10001280		Screw		Appelez-nous	-
23	W10279391		Assembly, Smart Valve Wire				$ 134.19
24	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
25	WPW10504753		Cover, Icemaker   (Replaces: W10504753)				$ 96.55
26	8201515		Assembly, Module And Motor   (Replaces: W10223929)			Immediately	$ 141.64
27	489136		Screw				$ 10.80
28	W10129069		Clip, Wire		Appelez-nous	-
29	W11624204		Screw   (Replaces: 486194)				$ 14.72
30	2252228		Bracket, Icemaker Mounting		Appelez-nous	-
31	W10508659		Assembly, Icemaker Wire				$ 134.19
32	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
33	WP2198641		Bracket, Icemaker Cover   (Replaces: 2198641)				$ 7.55
34	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
100	W11126009		Complete Icemaker Assembly   (Replaces: W10774430)			Immediately	$ 236.96
NI	W10355010		Cleaner, Kitchen & Appliance		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10355016		Cleaner, Stainless Steel		Appelez-nous	-
NI	W10355049		Wipes, Stainless Steel Cleaning				$ 7.91
