SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

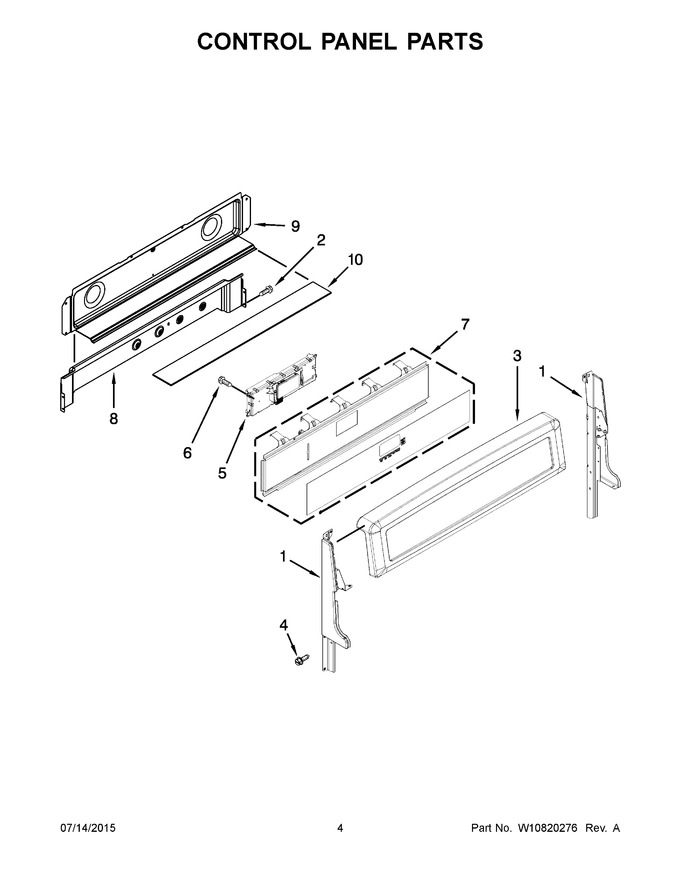

1	W10319109		Support, Backguard (black (left))				$ 92.84
2	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.85
3	W10097280		Console (black)				$ 119.25
4	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
5	W10879697		Control   (Replaces: W10692920)			Immediately	$ 500.82
6	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
7	W10664068		Assembly, Membrane (including Bracket) (black)		Appelez-nous	-
8	W10278697		Shield, Vent			Immediately	$ 183.33
9	W10776098		Cover, Backguard				$ 135.81
10	W11684874		Insulation, Wire Cover   (Replaces: W10309232)				$ 35.56
1A	W10319110		Support, Backguard (white (left))				$ 95.95
1B	W10319111		Support, Backguard (black (right))				$ 43.80
1C	W10319112		Support, Backguard (white (right))				$ 93.79
3A	W10097270		Console (white)				$ 118.50
3B	W10097310		Console (stainless)				$ 116.84
7A	W10664067		Assembly, Membrane (including Bracket) (white)				$ 354.59
7B	W10664073		Assembly, Membrane (including Bracket) (stainless)				$ 299.80
