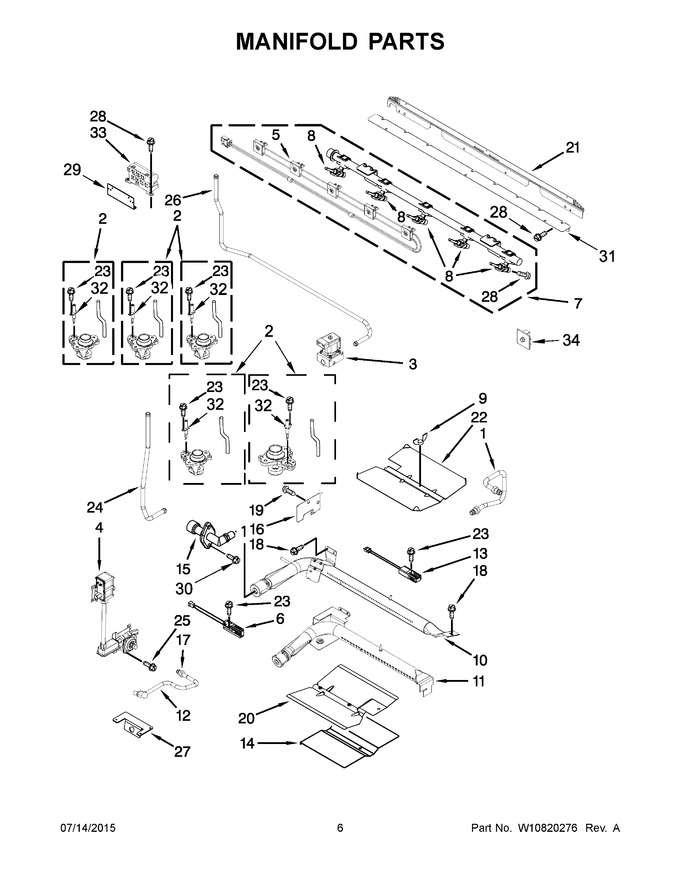

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319002 | Tubing, Broil |
|
$ 190.79 | |||||
| 2 | W10638882 | Holder, Orifice (16k) (left Front) |
|
$ 130.48 | |||||
| 3 | W10911971 | Valve, Shut Off (Replaces: W10368614) |
|
$ 375.49 | |||||
| 4 | WPW10546238 | Valve/regulator (Replaces: W10546238) |
|
Immediately | $ 333.86 | ||||
| 5 | WPW10204718 | Harness, Switch (Replaces: W10204718) |
|
$ 220.97 | |||||
| 6 | WPW10324738 | Ignitor, Gas (Replaces: W10324738) |
|
Immediately | $ 329.05 | ||||
| 7 | W10854406 | Assembly, Pipe Manifold (Replaces: W10204703) |
|
$ 379.95 | |||||
| 8 | WPW10206288 | Valve (16k) (left Front, Right Front & Right Rear) (Replaces: W10206288) |
|
Immediately | $ 111.88 | ||||
| 9 | 7103P030-60 | Nut, Wing |
|
$ 7.43 | |||||
| 10 | W11245221 | Burner, Broiler (Replaces: W10315768) |
|
$ 222.29 | |||||
| 11 | W11174122 | Burner, Bake (Replaces: W10407912) |
|
$ 213.50 | |||||
| 12 | W10342662 | Orifice, Bake (upper) |
|
$ 210.08 | |||||
| 13 | W11596211 | Ignitor, Bake (Replaces: 7432P143-60) |
|
Immediately | $ 93.36 | ||||
| 14 | W10298865 | Shield, Bake |
|
- | |||||
| 15 | W10292293 | Fitting, Broiler |
|
$ 104.17 | |||||
| 16 | 4005F421-45 | Cover, Ignitor Wire |
|
- | |||||
| 17 | 74007451 | Nut, Mounting (Replaces: 7103P195-60) |
|
$ 9.39 | |||||
| 18 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 20 | W10272528 | Baffle, Bake |
|
$ 294.68 | |||||
| 21 | WPW10276470 | Bracket, Manifold Rear Cover (Replaces: W10343062) |
|
$ 89.33 | |||||
| 22 | 3601F358-45 | Baffle, Broil Burner |
|
$ 254.66 | |||||
| 23 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 24 | W10524331 | Tubing (supply Regulator To Shutoff) |
|
$ 48.73 | |||||
| 25 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.85 | |||||
| 26 | W10295055 | Tubing (supply Shutoffn To Manifold) |
|
$ 207.20 | |||||
| 27 | W11756017 | Bracket, Orifice (Replaces: W10272520) |
|
- | |||||
| 28 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 7.55 | ||||
| 29 | W10319059 | Bracket, Spark Module |
|
- | |||||
| 30 | WP3387230 | Screw (Replaces: 7101P502-60) |
|
Immediately | $ 8.54 | ||||
| 31 | WPW10276466 | Bracket, Manifold (bottom) (Replaces: W10276466) |
|
$ 108.19 | |||||
| 32 | WPW10407676 | Electrode, Spark (Replaces: W10407676) |
|
$ 54.77 | |||||
| 33 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 355.95 | |||||
| 34 | W10631502 | Grommet, Valve Stem |
|
- | |||||
| 12A | W10342661 | Orifice, Bake (lower) |
|
$ 199.64 | |||||
| 2A | W10638851 | Holder, Orifice (5k) (left Rear) |
|
$ 133.46 | |||||
| 2B | W10638866 | Holder, Orifice (10k) (right Front) |
|
$ 129.81 | |||||
| 2C | W10638865 | Holder, Orifice (9.2k) (right Rear) |
|
- | |||||
| 2D | W10638852 | Holder, Orifice (5k) (center) |
|
- | |||||
| 8A | WPW10206287 | Valve (5k) (left Rear & Center) (Replaces: W10206287) |
|
Immediately | $ 198.14 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11674161 | Kit, Lp Conversion (Replaces: W10591270) |
|
$ 115.66 | |||||
| NI | W10324646 | Insulation, Orifice |
|
$ 91.18 |
