Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11051040 Lining, Door   (Replaces: W10485720) Special Order $ 301.00

2 W11132120 Glass, Inner   (Replaces: W10272707) Special Order $ 179.33

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 171.93

4 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55

5 W10485723 Retainer, Insulation Special Order $ 252.42

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 99.18

7 W10647259 Receiver, Hinge   (Replaces: W10289077) In-Stock Immediately $ 9.32

8 W10707396 Assembly, Door (black) Appelez-nous -
9 W10485731 Hinge, Door (left) Special Order $ 46.88

10 W10653408 Assembly, Door Handle (stainless (black Ice Models)) Special Order $ 260.14

11 W10645182 Bracket, Door Handle (stainless Models Only) Special Order $ 41.73

12 W10677255 Assembly, Door (stainless) Appelez-nous -
13 W10831019 Screw   (Replaces: W10480830) In-Stock Immediately $ 8.27

10A W10665842 Assembly, Door Handle (stainless (white Ice Models)) Special Order $ 260.14

10B W10832693 Assembly, Door Handle (stainless Models)   (Replaces: W10665843) In-Stock Immediately $ 324.58

8A W10707395 Assembly, Door (white) Appelez-nous -
9A W10485730 Hinge, Door (right) Special Order $ 46.79


    View Diagram in Separate Window     Print Icon   Print Part List

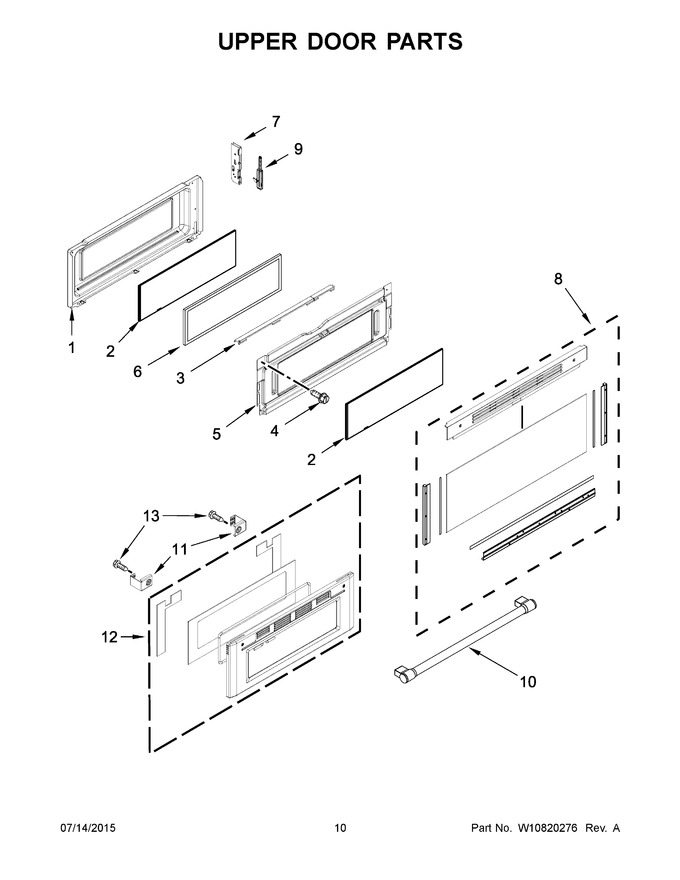

Diagram for MGT8720DS03
