SELECT A DIAGRAM
01 - Cover Sheet

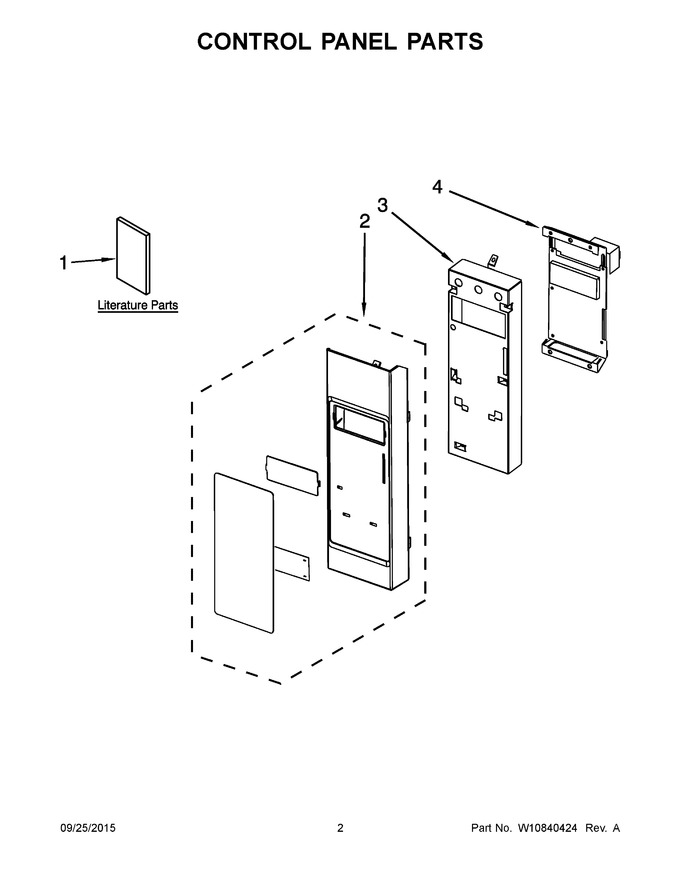

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10344702 | Installation Instructions |
|
- | |||||
| 2 | W10315761 | Control Panel Assembly (includes Lens And Membrane Switch) (white) |
|
- | |||||
| 3 | W10364232 | Bracket, Control |
|
- | |||||
| 4 | W10676698 | Microcomputer |
|
- | |||||
| 1A | W10249248 | Use & Care Guide |
|
- | |||||
| 1B | W10197630 | Cook Guide Label |
|
- | |||||
| 1C | W10443801 | Tech Sheet |
|
- | |||||
| 2A | W10315760 | Control Panel Assembly (includes Lens And Membrane Switch) (black) |
|
- |
