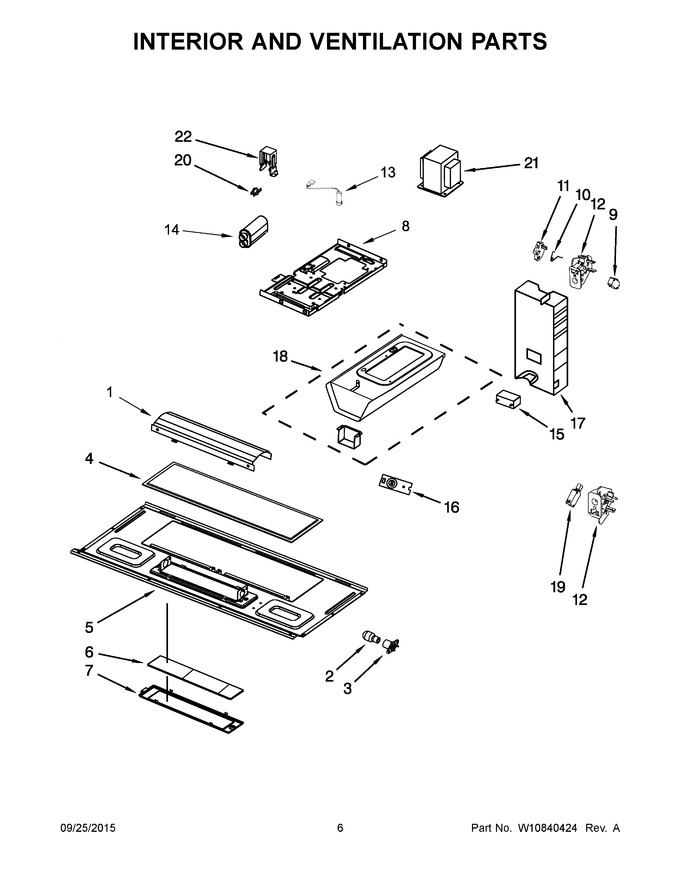

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240330		Assembly, Lamp Glass And Holder				$ 7.55
2	8206232A		Lamp 40 Watt   (Replaces: 8206232)			Immediately	$ 7.71
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 257.07
6	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 350.94
7	W10210873		Holder, Glass				$ 5.75
8	W10269456		Chassis				$ 82.02
9	W10269458		Microswitch V15t16-cc200/nc			Immediately	$ 40.11
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
13	W11256462		Diode, High Voltage   (Replaces: W10163432)			Immediately	$ 34.86
14	W10850446		Capacitor, High Voltage   (Replaces: W10138798)				$ 195.87
15	W11405832		Capacitor, Hood Motor   (Replaces: W10605896)				$ 28.60
16	W10163422		Thermistor				$ 179.70
17	W10364230		Air Guide, Lower		Appelez-nous	-
18	W10315759		Support, Ntc				$ 105.07
19	W10269460		Microswitch V15t16-cp200/no			Immediately	$ 45.95
20	W10269232		Thermostat, Cavity				$ 74.28
21	W10836753		Transformer, High Voltage   (Replaces: W10754523)			Immediately	$ 236.06
22	W10532063		Bracket, Capacitor				$ 29.69
12A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07

    View Diagram in Separate Window       Print Part List
