01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts

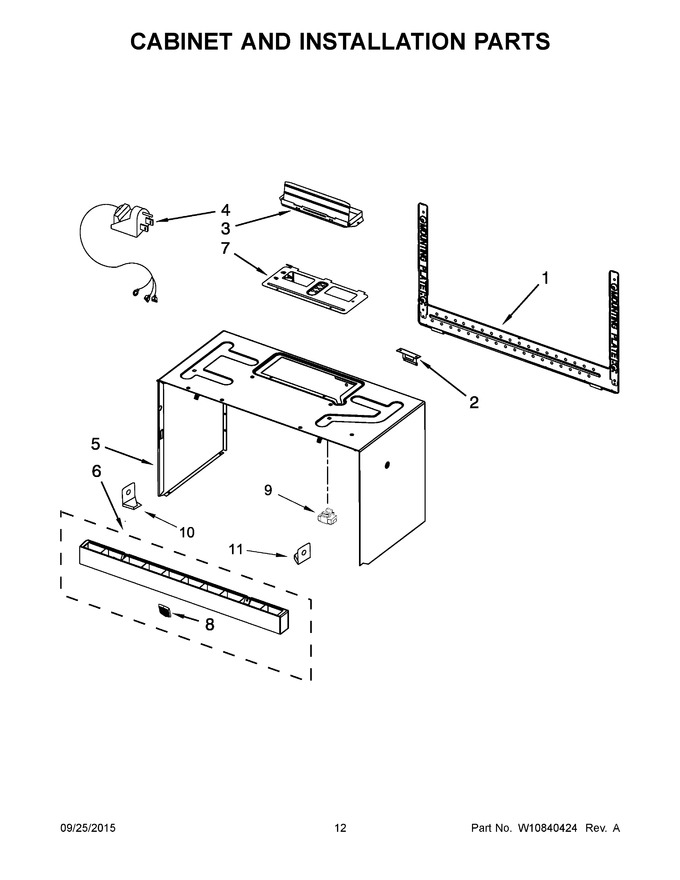

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 24.69 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 21.56 | |||||
| 5 | WPW10462003 | Case, Outer (white) (Replaces: W10462003) |
|
$ 291.92 | |||||
| 6 | W10286825 | Grille, Vent (white) |
|
$ 120.16 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10286845 | Badge |
|
$ 35.23 | |||||
| 9 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| 10 | W10830163 | Vent Grid Holder, Left Side (black) (Replaces: W10703285) |
|
$ 14.21 | |||||
| 11 | W10810989 | Vent Grid Holder, Right Side (black) (Replaces: W10703283) |
|
$ 10.22 | |||||
| 10A | W11026306 | Vent Grid Holder, Left Side (stainless) (Replaces: W10703284) |
|
Immediately | $ 7.55 | ||||
| 11A | W10703282 | Vent Grid Holder, Right Side (stainless) |
|
$ 11.00 | |||||
| 5A | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 297.51 | |||||
| 6A | W10286828 | Grille, Vent (black) |
|
$ 105.26 | |||||
| NI | W10539841 | Miscellaneous Parts, Headlamp/tt Wire Assembly (Replaces: W10269479) |
|
$ 20.98 | |||||
| NI | W10470168 | Miscellaneous Parts, Harness, Ntc Sensor Flat Wire |
|
$ 42.74 | |||||
| NI | W10163438 | Miscellaneous Parts, Ground Wire Assembly |
|
- | |||||
| NI | W10821385 | Miscellaneous Parts, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 103.72 | ||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper |
|
Immediately | $ 7.55 | ||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10779169 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W10346137 | Miscellaneous Parts, Harness, Wire Titan |
|
- | |||||
| NI | W10539842 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer (Replaces: W10163436) |
|
$ 16.70 |
