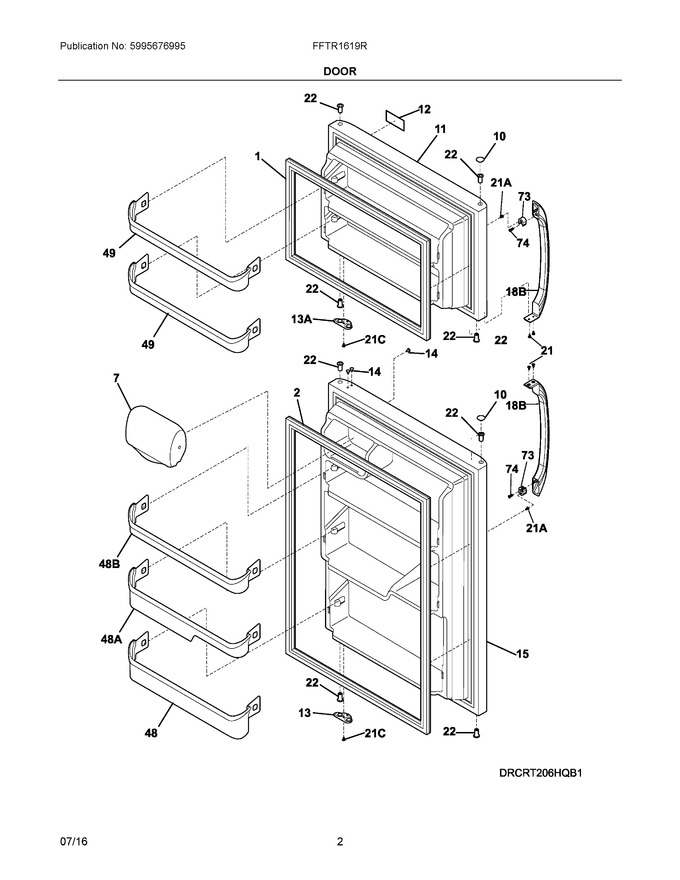

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193207		Gasket-frzr Door, Black, Magnetic				$ 204.91
2	242193210		Gasket-refr Door, Black, Magnetic			Immediately	$ 186.57
4	240535101		Rack-door			Immediately	$ 31.74
7	240337712		Door-dairy			Immediately	$ 40.45
8	240535001		Rack-door			Immediately	$ 53.55
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 18.54
11	807460013		Freezer Door, Complete, Stainless				$ 249.85
12	242016301		Nameplate, Frigidaire				$ 4.73
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 16.85
14	240494007		Plug-button, Gray			Immediately	$ 17.69
15	807460114		Refrigerator Door, Complete, Stainless				$ 353.76
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 8.43
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile   (Replaces: 5308016566)				$ 15.75
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 50.40
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.88
13A	240312415		Door Stop, Black, Frzr				$ 23.63
18B	218428121		Handle-door, Gray, W/block & Screw				$ 63.79
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
48A	240383801		Bin-door			Immediately	$ 62.11
48B	240383901		Bin-door			Immediately	$ 63.19
