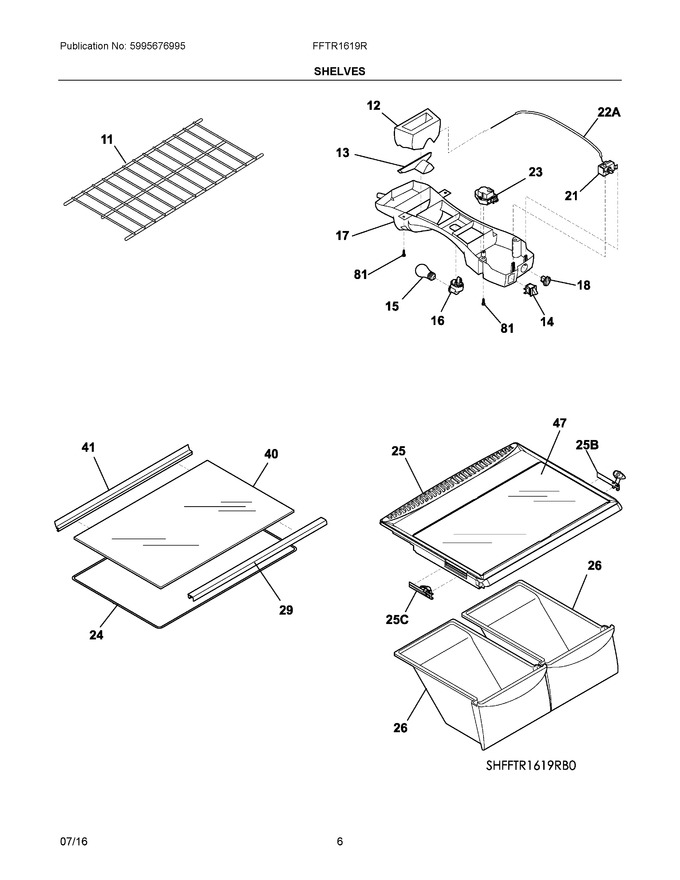

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5303282284		Shelf-freezer, "table Type			Immediately	$ 97.83
12	241542001		Diffuser, Air, Top			Immediately	$ 82.69
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	241559801		Socket, Light   (Replaces: 242081801)				$ 80.75
17	240368002		Control Box   (Replaces: 240368003)				$ 149.14
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control, Temperature   (Replaces: 5304421256)			Immediately	$ 80.34
23	215846604		Timer-defrost   (Replaces: 241809401)			Immediately	$ 27.31
24	240372404		Frame, Sliding Shelf, Full Width   (Replaces: 240372401)			Immediately	$ 114.60
25	5304497604		Cover, Crisper Pans, W/2 Humid Cntls			Immediately	$ 120.34
26	240364503		Pan, Crisper, (2)			Immediately	$ 162.81
29	240357703		Trim, Shelf, Front			Immediately	$ 70.88
40	240350619		Panel, Glass Shelf, Full Width				$ 174.74
41	240561501		Trim-shelf, 22.16", Rear			Immediately	$ 49.61
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile   (Replaces: 5308016566)				$ 15.75
47	242087903		Glass-shelf, Crisper Cover			Immediately	$ 129.10
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White   (Replaces: 240468201)				$ 10.11
25B	241613501		Control-humidity, Rh			Immediately	$ 13.39
25C	241613502		Control-humidity, Lh				$ 53.09
NIA	5303299664		Spacer, Shelf				$ 26.78
NIA	240388701		Wiring Harness, Control Box			Immediately	$ 88.99
