SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

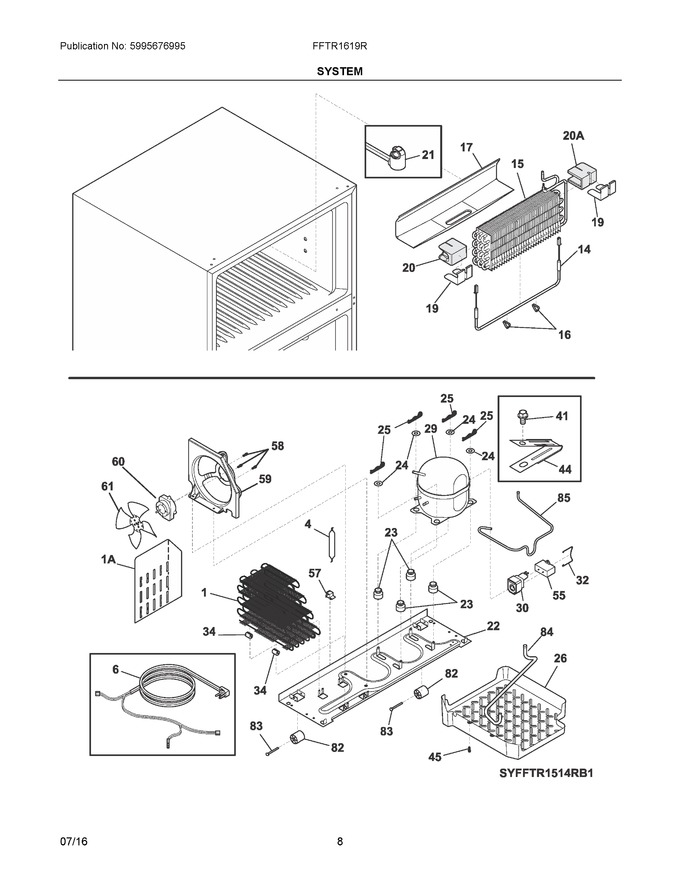

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785407		Condenser, Dynamic				$ 117.34
4	5303305677		Dryer-filter, W/process Tube   (Replaces: 242190201)			Immediately	$ 35.19
6	5304521786		Harness-wiring, Machine Compt   (Replaces: 242019701)				$ 140.72
14	242044007		Heater-defrost   (Replaces: 242044019)			Immediately	$ 58.79
15	5303918275		Evaporator Kit				$ 381.62
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 66.47
17	241801302		Trough-drain				$ 92.69
19	242320401		Shield, Heat, Evap Block				$ 74.99
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 12.47
21	5303918634		Thermostat Kit, Defrost, W/connector			Immediately	$ 44.79
22	241665605		Base-compressor				$ 155.93
23	218513300		Grommet-compr Mtg, (4)				$ 47.25
24	241812301		Washer-compr Mtg				$ 14.32
25	242037701		Clip-compressor Mtg				$ 3.15
26	241920605		Pan-defrost   (Replaces: 241683601)				$ 59.73
29	5303918659		Compressor, W/o Electricals   (Replaces: 5304501173)				$ 596.41
30	297259528		Controller, Compressor   (Replaces: 297259507)				$ 77.05
32	5304497418		Clip, Controller				$ 10.24
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 22.05
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
44	5304456288		Clamp-wiring Harness, Strain Relief, Galv Steel		Appelez-nous	-
45	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
55	297286803		Capacitor-run			Immediately	$ 31.97
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569202		Screw, 8-18 X .500				$ 2.36
59	242050604		Shroud, Cond Fan Motor   (Replaces: 242050601)				$ 30.71
60	242018301		Motor-condenser Fan   (Replaces: 297279502)			Immediately	$ 153.95
61	241639502		Blade-condenser Fan			Immediately	$ 24.43
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 57.30
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 39.27
84	240500801		Tube-drain, Rubber, Lower				$ 72.45
85	5304501172		Tube-connector, Suction		Appelez-nous	-
1A	242213901		Deflector, Air				$ 21.91
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 12.75
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 21.26
NI	5304523788		Harness, Wiring, Frzr Section   (Replaces: 5304503321)			Immediately	$ 42.84
NI	218843801		Screw, Hex Wshr Hd, 8-15a X 0.500				$ 16.01
NIA	240346701		Tape-foam Seal, Shroud				$ 33.08
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
NIB	240359403		Screw-fan Shroud, (2)				$ 4.21

    View Diagram in Separate Window       Print Part List
