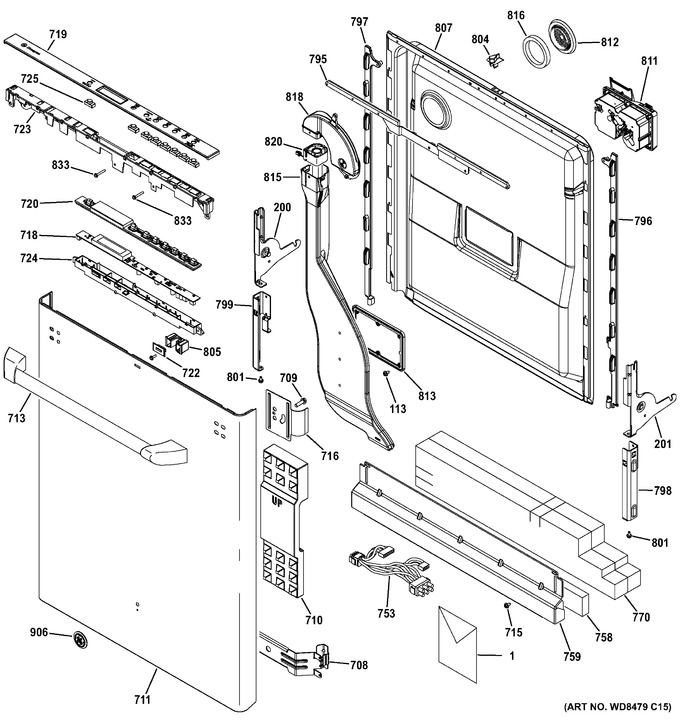

1 - Escutcheon & Door Assembly
2 - Body Parts (1)
3 - Body Parts (2)
4 - Upper Rack Assembly
5 - Lower Rack Assembly
6 - Sump & Filter Assembly
7 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-55085 | Pm Owners Manual |
|
- | |||||
| 1 | 165D9739P017 | Insert Mini Manual |
|
- | |||||
| 1 | 31-30673 | Pm Mini-manual |
|
- | |||||
| 1 | WD35X20333 | Bag Hardware Asm Kit |
|
- | |||||
| 1 | WD02X10211 | Scr 1/4-20 Bt Cb .563 Zn |
|
- | |||||
| 1 | WD30X20324 | Slide Third Rack |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.97 | |||||
| 200 | WG04L01959 | Arm Hinge Asm (Replaces: WD14X20129) |
|
$ 61.06 | |||||
| 201 | WG04L01958 | Arm Hinge Asm Rh (Replaces: WD14X20128) |
|
$ 61.06 | |||||
| 708 | WD30X10045 | Brace Door Asm |
|
- | |||||
| 709 | WH02X10123 | Screw 1/4-20 Tpt 1h 1/2 |
|
- | |||||
| 710 | WD01X10585 | Block Foam Door |
|
- | |||||
| 711 | WD34X20533 | Kit Door Asm Outer |
|
- | |||||
| 713 | WD13X10057 | Handle Asm |
|
- | |||||
| 715 | WG04A02147 | Scr 10-32 Gx Hxw 3/8 (Replaces: WD02X10220) |
|
$ 3.97 | |||||
| 716 | WD01X20135 | Bracket Handle |
|
- | |||||
| 718 | WD21X22436 | Control Ui Lcd |
|
- | |||||
| 719 | WG04L06311 | Cover Console Asm Iml (Replaces: WD34X20694) |
|
$ 136.29 | |||||
| 720 | WD21X20299 | Silicone Light Pipe |
|
- | |||||
| 722 | WD09X20398 | Lens And Adhesive Asm |
|
- | |||||
| 723 | WD12X20235 | Console Top Control |
|
- | |||||
| 724 | WD12X20397 | Housing Bottom |
|
- | |||||
| 725 | WD09X20394 | Button |
|
- | |||||
| 753 | WD21X20149 | Harness Asm Door |
|
- | |||||
| 758 | WD01X10581 | Insulation Toe Kick |
|
- | |||||
| 759 | WG04L03643 | Toe Kick (Replaces: WD27X20395) |
|
$ 72.77 | |||||
| 770 | WD01X21374 | Barrier Toekick |
|
- | |||||
| 795 | WD01X20220 | Attachment Strip Top |
|
- | |||||
| 796 | WG04A02187 | Attach Strip (Replaces: WD01X10634) |
|
$ 20.65 | |||||
| 797 | WG04A02180 | Attach Strip (Replaces: WD01X10633) |
|
Immediately | $ 12.71 | ||||
| 798 | WG04A03460 | Brkt Support Hinge Asm (Replaces: WD01X20126) |
|
$ 14.29 | |||||
| 799 | WG04A03459 | Brkt Support Hinge Asm (Replaces: WD01X20127) |
|
$ 14.29 | |||||
| 804 | WD13X20245 | Striker Latch |
|
- | |||||
| 805 | WD13X10068 | Striker Adapter |
|
- | |||||
| 807 | WD31X20490 | Kit Door Inner Asm |
|
- | |||||
| 811 | WD12X20391 | Module Detergent |
|
- | |||||
| 812 | WD12X20392 | Cover Vent |
|
- | |||||
| 813 | WD12X10462 | Plate Detergent |
|
- | |||||
| 815 | WD12X20218 | Vent Conduit Asm |
|
- | |||||
| 816 | WG04L01634 | Door Vent Seal (Replaces: WD08X10092) |
|
Immediately | $ 11.12 | ||||
| 818 | WD12X20244 | Transition Piece Asm |
|
- | |||||
| 820 | WD24X20390 | Vent Fan Asm |
|
- | |||||
| 906 | WG04A01013 | Badge Ge Asm (Replaces: WR04X10181) |
|
$ 23.82 |
