1 - Escutcheon & Door Assembly
2 - Body Parts (1)
3 - Body Parts (2)
4 - Upper Rack Assembly
5 - Lower Rack Assembly
6 - Sump & Filter Assembly

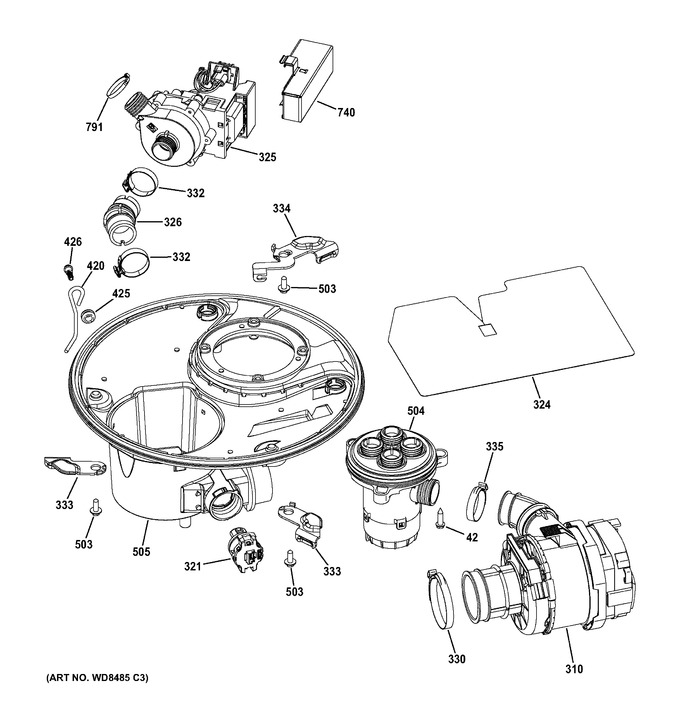

7 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD00X892 | Screw #8-3/4 Hx Hd Ss |
|
- | |||||
| 310 | WG04A01811 | Pump Variable Wash Asm (Replaces: WD26X20213) |
|
Immediately | $ 302.98 | ||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 324 | WD01X20212 | Shield Pump Main |
|
- | |||||
| 325 | WD26X20306 | Pump Variable Drain Asm |
|
- | |||||
| 326 | WD24X20305 | Hose Elbow Drain |
|
- | |||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X20304 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 504 | WD18X20214 | Diverter Active Asm |
|
- | |||||
| 505 | WD18X10055 | Sump Manifold |
|
- | |||||
| 740 | WD01X20307 | Shield Pump Drain |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG01F08006 | Kit Service Ui Lcd Ffstn (Replaces: WG04A03395) |
|
$ 235.26 | ||||||
| WG04A01811 | Variable Speed Pump Kit |
|
Immediately | $ 302.98 | |||||
| WG04L06311 | Couvercle Console Asm. (Replaces: WG04L04121) |
|
$ 136.29 | ||||||
| WG04A01460 | Kit Door Balance |
|
$ 72.49 | ||||||
| WG04A01134 | Kit - Piranha Clamps Ps |
|
Immediately | $ 21.85 | |||||
| WG04A01462 | Ens. Porte Asm. Int. |
|
$ 248.41 | ||||||
| WG04L01959 | Bras De La CharniÃ#re |
|
$ 61.06 | ||||||
| WG04L01958 | Bras De La CharniÃ#re |
|
$ 61.06 | ||||||
| WG04L01634 | Door Vent Seal |
|
Immediately | $ 11.12 | |||||
| WG01F08006 | Commande Electroluminescent (Replaces: WG04F09672) |
|
$ 235.26 | ||||||
| WG04A04003 | Gasket Tub Ss (Replaces: WG04F09561) |
|
Immediately | $ 192.73 | |||||
| WG04F08195 | Inverter Asm Dish Pump |
|
$ 250.95 | ||||||
| WG04A04448 | Pump Variable Drain Asm (Replaces: WG04F07127) |
|
Immediately | $ 153.18 | |||||
| WG04F07079 | Silicium Tuyau |
|
$ 78.84 | ||||||
| WG04F06992 | Transition Asm |
|
$ 33.35 | ||||||
| WG04F06991 | Event Conduit Asm |
|
$ 66.80 | ||||||
| WG04F05896 | Event Du Ventilateur |
|
$ 79.46 | ||||||
| WG04F05402 | Harness Asm Door |
|
$ 67.82 | ||||||
| WG04F05113 | Console Et Couvercle |
|
$ 85.92 | ||||||
| WG01F08006 | Ens. Service Interface (Replaces: WG04A03539) |
|
$ 235.26 | ||||||
| WG04A03397 | Kit Svc Machine Best |
|
$ 127.69 |
