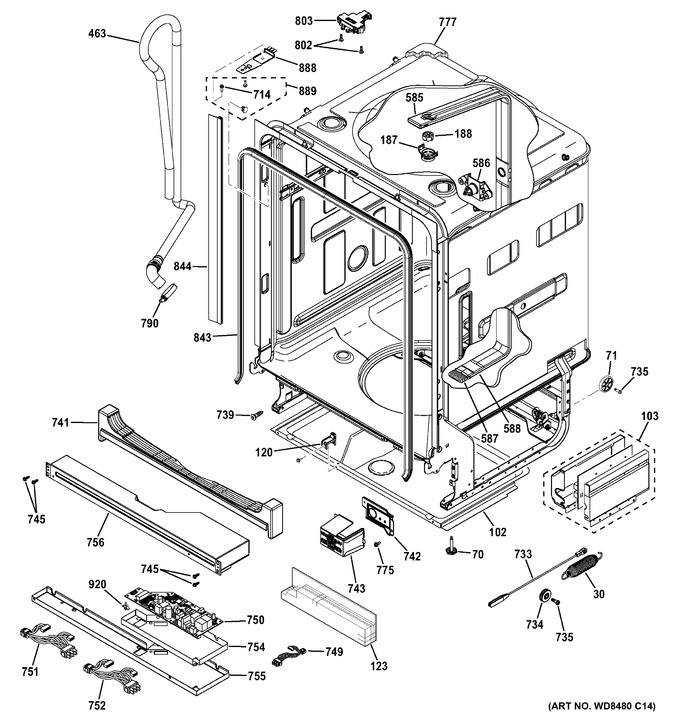

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | WD35X20335 | Kit Door Balance |
|
- | |||||
| 70 | WG01A01600 | Screw Leveling (Replaces: WD12X10417) |
|
Immediately | $ 9.53 | ||||
| 71 | WD27X20211 | Wheel Rear Leveling |
|
- | |||||
| 102 | WD18X20461 | Pan Leak |
|
- | |||||
| 103 | WD21X20728 | Inverter Asm Dish Pump |
|
- | |||||
| 120 | WD21X20552 | Sensor Leak Pan |
|
- | |||||
| 123 | WD30X21155 | Bag Insulation Asm |
|
- | |||||
| 187 | WD22X20688 | Hub |
|
- | |||||
| 188 | WD22X20689 | Impeller |
|
- | |||||
| 463 | WG04F12155 | Hose Loop Drain High (Replaces: WD24X10067) |
|
Immediately | $ 57.27 | ||||
| 585 | WD12X20337 | Conduit Main Asm |
|
- | |||||
| 587 | WG04F06950 | Seal Conduit (Replaces: WD08X10098) |
|
$ 9.53 | |||||
| 588 | WD12X21675 | Shield Conduit |
|
- | |||||
| 714 | WG04A01237 | Scr 8-18 B Hxw .480 S (Replaces: WD02X10160) |
|
$ 3.97 | |||||
| 733 | WD01X20332 | Cable Asm |
|
- | |||||
| 734 | WD16X10013 | Pulley Hinge |
|
- | |||||
| 739 | WZ5X158 | Screw Ground |
|
- | |||||
| 741 | WD01X20121 | Spacer Tub Front |
|
- | |||||
| 742 | WD12X10411 | Bracket Junction Box |
|
- | |||||
| 743 | WG04L01578 | Cover Junction Box (Replaces: WD12X10412) |
|
Immediately | $ 44.46 | ||||
| 745 | WD02X10221 | Scr 10-32 Tt Hxw 14/25 S |
|
- | |||||
| 749 | WD21X22847 | Harness Asm Jumper |
|
- | |||||
| 750 | WD21X22283 | Control Machine Best Csm |
|
- | |||||
| 751 | WD21X20588 | Harness Asm Ac |
|
- | |||||
| 752 | WD21X22275 | Harness Asm Dc |
|
- | |||||
| 754 | WD01X20493 | Shield Dielectric |
|
- | |||||
| 754 | WD01X20315 | Shield Control Box |
|
- | |||||
| 755 | WD30X20229 | Control Box Bottom |
|
- | |||||
| 756 | WD27X10390 | Control Box Top |
|
- | |||||
| 777 | WD01X21156 | Insulation Tub |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 802 | WD22X10093 | Filter Coarse Ss |
|
- | |||||
| 803 | WG04F04726 | Latch Tub Side Standard (Replaces: WD21X10490) |
|
Immediately | $ 69.95 | ||||
| 843 | WG04A04003 | Gasket Tub (Replaces: WD08X20675) |
|
Immediately | $ 192.73 | ||||
| 844 | WG04A05119 | Left Side Trim Tub (Replaces: WD08X20201) |
|
Immediately | $ 86.93 | ||||
| 844 | WD08X20199 | Right Side Trim Tub |
|
- | |||||
| 844 | WD08X20200 | Center Trim Tub |
|
- | |||||
| 888 | WG04A03280 | Bracket Countertop (Replaces: WD01X10598) |
|
Immediately | $ 30.76 | ||||
| 889 | WG04A01079 | Ct Screw Asm (Replaces: WD35X10383) |
|
Immediately | $ 33.35 | ||||
| 920 | WD01X21975 | Clip Control Board |
|
- |
