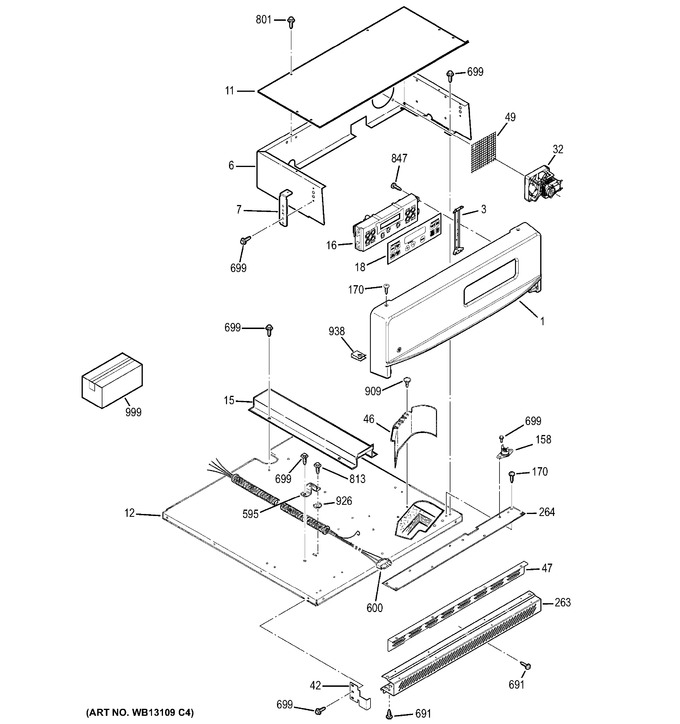

SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10755		Panel Cntl Swo (scr-wht)		Appelez-nous	-
3	WB02T10250		Bracket Cntl Mtg 24		Appelez-nous	-
6	WB37K5041		Control Housing		Appelez-nous	-
7	WB2K5406		Control Panel Bracket		Appelez-nous	-
11	WB37K5040		Control Housing Top		Appelez-nous	-
12	WB63K5120		Top Cabinet		Appelez-nous	-
15	WB2X9665		Wire Cover		Appelez-nous	-
16	WB27T10494		Control Oven Erc3				$ 405.99
18	WB27T10588		Faceplate Graphics Asm		Appelez-nous	-
32	WB26K5072		Fan-lower		Appelez-nous	-
42	WB34K5249		Heat Shield		Appelez-nous	-
46	WB34K5099		Wire Shield		Appelez-nous	-
47	WB38K5058		Barrier Vent		Appelez-nous	-
49	WB02X26291		Screen Fan		Appelez-nous	-
158	WB24T10096		Switch Limit Bimetal		Appelez-nous	-
170	WB1K58		Screw 8-18 (wh) 1/2 S		Appelez-nous	-
263	WB7K5495		Vent Trim-ss		Appelez-nous	-
264	WB7K5121		Extension Vent Trim		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18K5364		Conduit Wire Assy		Appelez-nous	-
691	WB1K5163		Screw-wht		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
801	WB01M10002		Screw		Appelez-nous	-
813	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
847	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
909	WB1X1173		Rivet		Appelez-nous	-
926	WB1X1260		Ground Washer		Appelez-nous	-
938	WB1K5209		Clip		Appelez-nous	-
999	WB18T10305		Dr Sw Wire Harness		Appelez-nous	-
999	31-10583		Instructions Install		Appelez-nous	-
999	31-14203		Manual Mini & Wd Asm		Appelez-nous	-
999	49-80715		Pm Owners Manual		Appelez-nous	-
999	WB18T10286		Harness Wire Main		Appelez-nous	-
999	WB18T10334		Harness Wire Sns/lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
