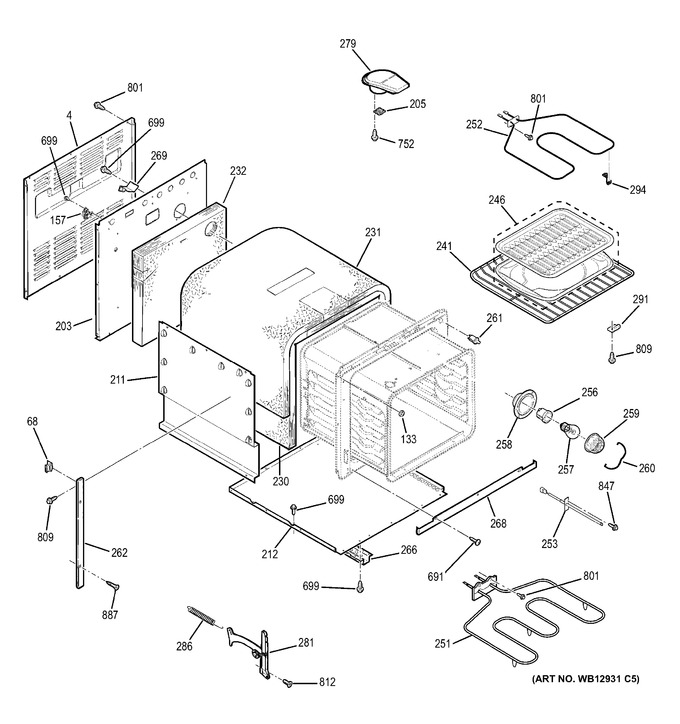

2 - Body Parts
3 - Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB63M45 | Cabinet Back |
|
- | |||||
| 68 | WB02T10163 | Spacer Frt Trim (wht) |
|
- | |||||
| 133 | WG02F03972 | Door Bumper (Replaces: WB01T10022) |
|
$ 5.72 | |||||
| 157 | WB24K5098 | Limit Switch-body |
|
- | |||||
| 203 | WB63T10105 | Back Main |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 211 | WB02T10197 | Retainer Insln Sde |
|
- | |||||
| 212 | WB63K5116 | Bottom Cab |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrpr Otr |
|
- | |||||
| 232 | WB35K5057 | Insulation-back/btm Uppe |
|
- | |||||
| 241 | WB48T10094 | Rack Oven |
|
- | |||||
| 246 | WS01A00265 | Broiler Pan & Rack Large (Replaces: WB48X10056) |
|
$ 67.51 | |||||
| 251 | WB44X26298 | Element Bake (2650w) |
|
- | |||||
| 252 | WB44T10111 | Element Broil (3400w) |
|
- | |||||
| 253 | WB21X5347 | Wb21x5301 |
|
- | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 258 | WG02F04577 | Oven Light Cup (Replaces: WB02T10037) |
|
$ 28.58 | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | WG02F02821 | Switch Spdt High Amp (Replaces: WB24T10160) |
|
Immediately | $ 27.16 | ||||
| 262 | WB7K5125 | Vertical Side Trim-white |
|
- | |||||
| 266 | WB2X9634 | Bottom Channel |
|
- | |||||
| 268 | WB07T10414 | Trim Frt Frm Lwr |
|
- | |||||
| 269 | WB2K5164 | Cup Light Support |
|
- | |||||
| 279 | WB38K5028 | Wb38k5051 |
|
- | |||||
| 281 | WB10T10061 | Hinge Ov Dr Lt |
|
- | |||||
| 281 | WB10T10060 | Hinge Ov Dr Rt |
|
- | |||||
| 286 | WB09T10007 | Spring Oven Dr Upper |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 691 | WB1K5163 | Screw-wht |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 801 | WB01M10002 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 812 | WB1K5191 | Screw Flat Zinc 10-32 |
|
- | |||||
| 847 | WB02T10324 | Scr 6-20 Gxb Ihxw 3/8 Ni |
|
- | |||||
| 887 | WB1K5172 | Trim Screw-white |
|
- |
