SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock

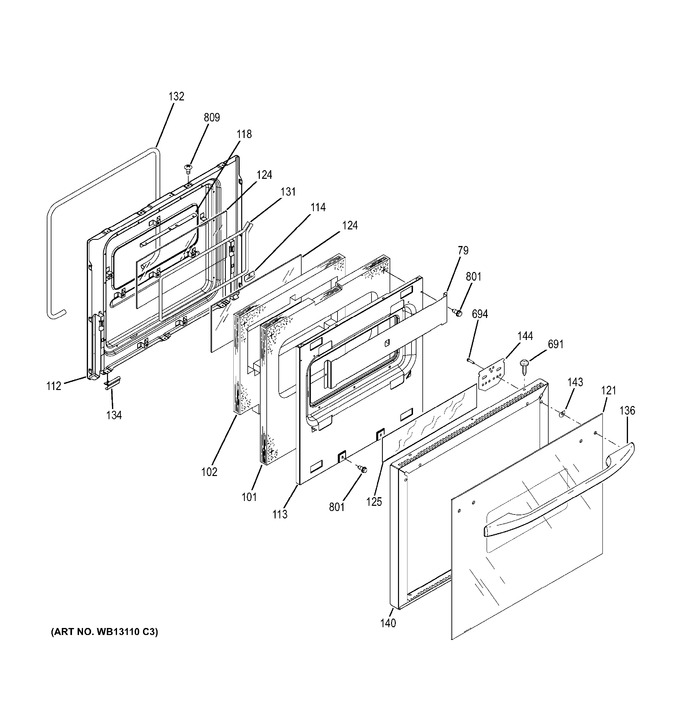

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
79	WB34K5077		Ov Dr Baffle		Appelez-nous	-
101	WB35K5054		Door Insulation		Appelez-nous	-
102	WB35T10101		Insulation		Appelez-nous	-
112	WB63X26288		Liner Ovn Dr Asm		Appelez-nous	-
113	WB2K5159		Ov Dr Ins Retainer		Appelez-nous	-
114	WB2M1		Ov Dr Glass Retainer		Appelez-nous	-
118	WB2K5132		Ov Dr Lining Stiffener		Appelez-nous	-
121	WB15T10124		Glass Ovn Dr Otr 24(wht)		Appelez-nous	-
124	WB57T10315		Glass Ovn Dr Inr		Appelez-nous	-
125	WB34K5254		Heat Reflector		Appelez-nous	-
131	WB2X9168		Seal Glass Ov Dr Inner		Appelez-nous	-
132	WB35X26289		Gasket Ovn Dr		Appelez-nous	-
134	WB02T10117		Btm Trim Clip		Appelez-nous	-
136	WB15T10123		Handle Ge 24 (wht)		Appelez-nous	-
140	WB56T10161		Frame Ovn Dr (wht)		Appelez-nous	-
143	WB2K5147		Glass Spacer		Appelez-nous	-
144	WB2K5395		Reinforcement Plate		Appelez-nous	-
691	WB1K5163		Screw-wht		Appelez-nous	-
694	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
801	WB01M10002		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
