SELECT A DIAGRAM

10 - Quick Chill


11 - Case Parts - Standard


1 - Freezer Door


2 - Case Parts - Flush Inset


3 - Machine Compartment


4 - Fresh Food Door


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves

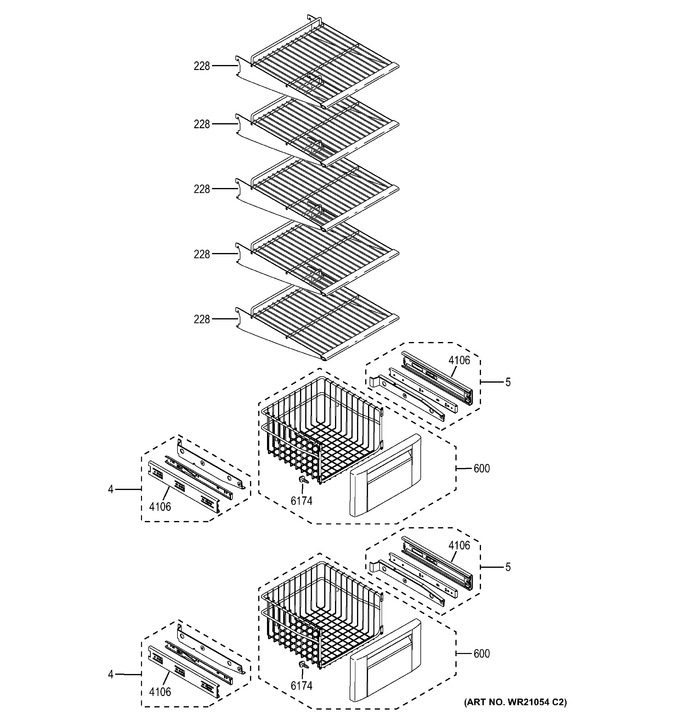

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	WR72X10190		Fz Slide Asm Lh		Appelez-nous	-
5	WR72X10189		Fz Slide Asm Rh		Appelez-nous	-
228	WR71X10810		Wire Shelf Asm Fz		Appelez-nous	-
600	WR21X10057		Fz Basket Asm		Appelez-nous	-
4106	WR72X10365		Slide Outer		Appelez-nous	-
6174	WR01X10449		Screw 6x1/2 Pan Phil H/l		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
