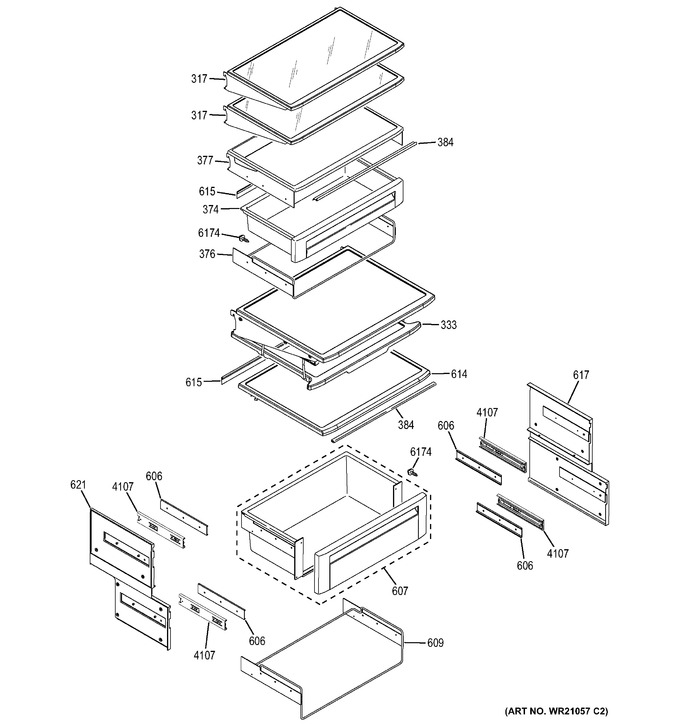

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
317	WR71X10811		Encapsulated Shelf Asm		Appelez-nous	-
333	WR71X10868		Quick Shelf Asm		Appelez-nous	-
374	WR32X25593		Pan Snack Asm 36		Appelez-nous	-
376	WR02X12833		Snack Pan Wire Spt 36		Appelez-nous	-
377	WR71X10812		Shelf Snack Pan Asm 36		Appelez-nous	-
384	WR40X10042		Seal Pan Front		Appelez-nous	-
606	WR72X10369		Slide Inner		Appelez-nous	-
607	WR32X26075		Pan Veg Asm 36"		Appelez-nous	-
609	WR72X10377		Veg Pan Wire Support		Appelez-nous	-
614	WR32X10691		Shelf Asm Pan Top		Appelez-nous	-
615	WR02X12850		Pan Rear Seal 36		Appelez-nous	-
617	WR72X10329		Pan Side Support Rh		Appelez-nous	-
621	WR72X10330		Pan Side Support Lh		Appelez-nous	-
4107	WG03L00743		Slide Outer   (Replaces: WR72X10366)				$ 61.96
6174	WR01X10449		Screw 6x1/2 Pan Phil H/l		Appelez-nous	-
