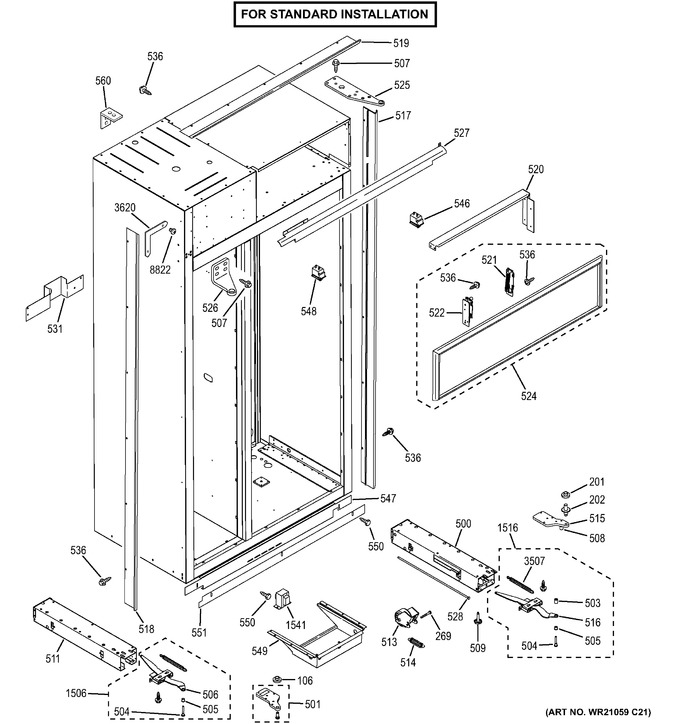

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 106 | WR01X10297 | Fz Bottom Hinge Bushing |
|
- | |||||
| 201 | WG03A00011 | Bushing Hinge Bottom (Replaces: WR02X10953) |
|
$ 73.58 | |||||
| 202 | WR01A01444 | Lower Ff Adj Hinge Pin (Replaces: WR13X10239) |
|
$ 21.63 | |||||
| 269 | WR01X10809 | Key Pivot |
|
- | |||||
| 500 | WR13X10965 | Base Channel Rh |
|
- | |||||
| 501 | WR13X23603 | Hinge Case Bottom Fz |
|
- | |||||
| 503 | WR01L08607 | Spacer Ff Door Closure (Replaces: WR02X11231) |
|
$ 21.71 | |||||
| 504 | WR02X11207 | Bolt Shoulder |
|
- | |||||
| 505 | WR02X10951 | Bhng Arm Nylon Ff Dr Cl |
|
- | |||||
| 506 | WR02X13151 | Actuator Arm |
|
- | |||||
| 507 | WR01X10177 | Hinge Screw Door Btm |
|
- | |||||
| 508 | WR02X11209 | Shear Pin |
|
- | |||||
| 509 | WR02X10479 | Leveling Leg |
|
- | |||||
| 511 | WR13X10966 | Base Channel Lh |
|
- | |||||
| 513 | WR2X8377 | Wheel Asm. |
|
- | |||||
| 514 | WG03A00253 | Spring Wheel #le022c4 (Replaces: WR02X11233) |
|
$ 15.88 | |||||
| 515 | WR13X23372 | Hinge Case Bottom |
|
- | |||||
| 516 | WR02X13152 | Actuator Arm |
|
- | |||||
| 517 | WG03L05391 | Trim Case Rh Side (Replaces: WR17X12831) |
|
Immediately | $ 192.66 | ||||
| 518 | WR17X11181 | Case Trim Fz Side |
|
- | |||||
| 519 | WR17X12858 | Trim Case Top Sxs 36 |
|
- | |||||
| 520 | WR13X11003 | Mount Hood Grill Hinge |
|
- | |||||
| 521 | WR13X10204 | Hinge Assy Grille Right |
|
- | |||||
| 522 | WR13X10730 | Grill Hinge Left |
|
- | |||||
| 524 | WR74X10282 | Kit Grill Panel Asm 36 |
|
- | |||||
| 525 | WR13X23350 | Hinge Case Ff Upper |
|
- | |||||
| 526 | WR13X10246 | Fz Hinge Sxs Case Upper |
|
- | |||||
| 527 | WR74X10121 | Eyebrow Switch Cover |
|
- | |||||
| 528 | WR01X10186 | Base Shaft |
|
- | |||||
| 531 | WR02X12853 | Fill Tube Cover - Disp |
|
- | |||||
| 536 | WR01X10484 | 8-32 X 5/8" Ph Ss Tcs |
|
- | |||||
| 546 | WR23X23883 | Switch Light |
|
- | |||||
| 547 | WR74X26122 | Toe Kick 36" |
|
- | |||||
| 548 | WR23X21444 | Switch Light Fz |
|
- | |||||
| 549 | WR17X26106 | Tray Transformer |
|
- | |||||
| 550 | WR01X10065 | Screw 10-32 Gxtt Flp 595 |
|
- | |||||
| 551 | WR74X26124 | Toe Kick Skirt 36" |
|
- | |||||
| 560 | WR01X10825 | Bracket Anti-tip |
|
- | |||||
| 1506 | WR02X11208 | Link Actuator Fz |
|
- | |||||
| 1516 | WR02X11211 | Link Aucator Ff |
|
- | |||||
| 1541 | WR62X22863 | Transformer |
|
- | |||||
| 3507 | WG03A00042 | Spring Closure (Replaces: WR02X12948) |
|
$ 31.76 | |||||
| 3620 | WR02X11335 | Trim Corner Key |
|
- | |||||
| 8822 | WH2X1211 | Screw |
|
- |
