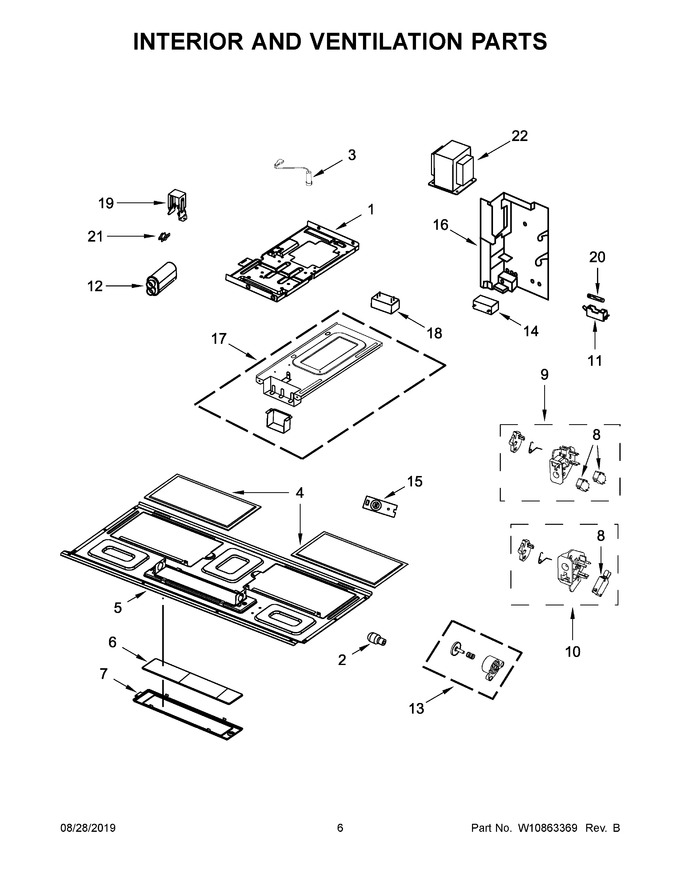

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10286815 | Chassis |
|
- | |||||
| 2 | W10709921 | Lamp, Halogen |
|
Immediately | $ 21.22 | ||||
| 3 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W10245196 | Plate, Bottom |
|
$ 257.07 | |||||
| 6 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 350.94 | |||||
| 7 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 8 | N/P | Switches, Interlock (not Serviced, Order Interlock Assemblies) |
|
- | |||||
| 9 | W11192679 | Assembly, Lower Interlock (includes Switches) (Replaces: W11169315) |
|
Immediately | $ 24.11 | ||||
| 10 | W11192678 | Assembly, Upper Interlock (includes Switches) (Replaces: W11169313) |
|
Immediately | $ 34.38 | ||||
| 11 | W10245194 | Holder, Fuse |
|
$ 87.31 | |||||
| 12 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 195.87 | |||||
| 13 | W10197758 | Assembly, Piston |
|
Immediately | $ 93.36 | ||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 44.36 | |||||
| 15 | W10163422 | Thermistor |
|
$ 179.70 | |||||
| 16 | W10640884 | Air Guide, Lower |
|
$ 25.63 | |||||
| 17 | W10310720 | Chassis Assembly |
|
- | |||||
| 18 | W10245190 | Resistor, Cement |
|
- | |||||
| 19 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 20 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 21 | W10864742 | Thermostat, Cavity 125/-35 Celcius (Replaces: W10476901) |
|
$ 88.67 | |||||
| 22 | W10733411 | Transformer, High Voltage |
|
$ 218.99 |
