01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

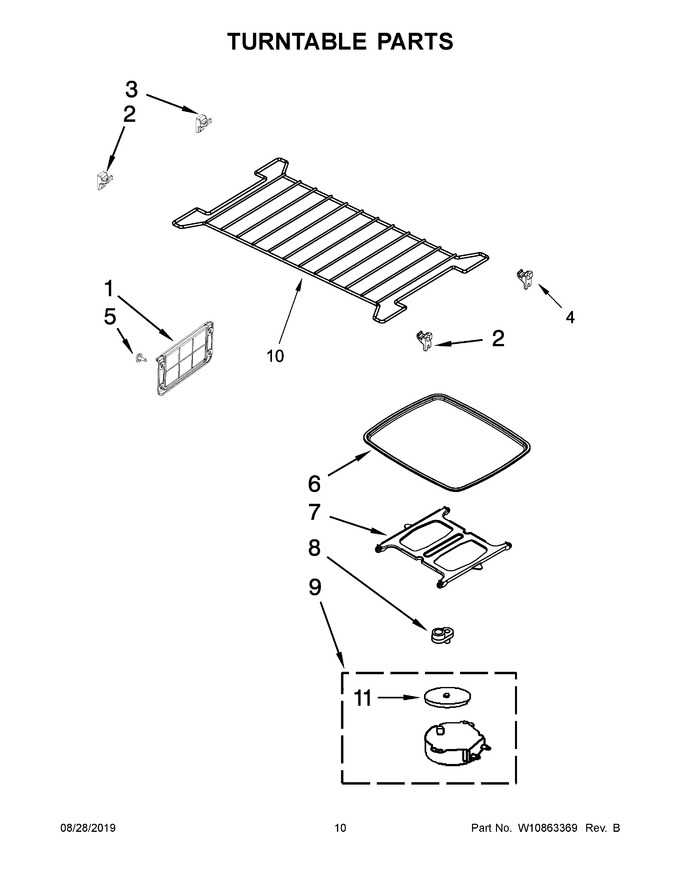

| 1 | W10313272 | Cover, Waveguide |
|
Immediately | $ 36.02 | ||||
| 2 | W10840759 | Hook, Microwave Rack (left Front & Right Front) (Replaces: W10245207) |
|
- | |||||
| 3 | W10840794 | Hook, Microwave Rack (left Rear) (Replaces: W10245208) |
|
$ 24.76 | |||||
| 4 | W10840795 | Hook, Microwave Rack (right Rear) (Replaces: W10245209) |
|
$ 26.04 | |||||
| 5 | W11319886 | Rivets (Replaces: W10138801) |
|
$ 22.48 | |||||
| 6 | W10289909 | Turntable |
|
$ 105.74 | |||||
| 7 | W10289910 | Ring, Turntable |
|
$ 36.62 | |||||
| 8 | W10290311 | Driver, Turntable |
|
$ 39.51 | |||||
| 9 | W11661547 | Motor, Turntable (Replaces: W10466421) |
|
$ 102.33 | |||||
| 10 | W10803366 | Rack, Microwave (Replaces: W10637159) |
|
$ 30.40 | |||||
| 11 | W10502938 | Seal, Waterproof |
|
- |
