SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts

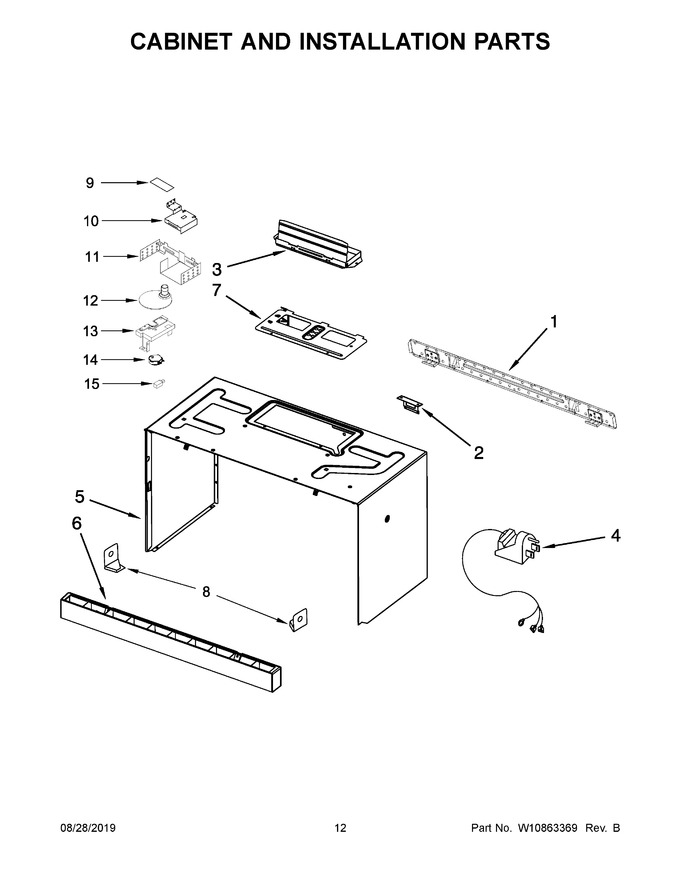

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
5	W10883282		Case, Outer (white)   (Replaces: W10838183)				$ 272.24
6	W10310714		Grille, Vent (white)				$ 125.32
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10520331		Holder, Vent (white)		Appelez-nous	-
9	WPW10499304		Pcba, Vent   (Replaces: W10499304)				$ 354.92
10	W10310722		Holder, Pcba		Appelez-nous	-
11	W10508582		Bracket, Motor		Appelez-nous	-
12	W10546149		Cam, Rotation		Appelez-nous	-
13	W10546152		Plate, Water Spillage		Appelez-nous	-
14	W10310726		Motor, Vent		Appelez-nous	-
15	W10310727		Switch, Micro		Appelez-nous	-
5A	W10883284		Case, Outer (black)   (Replaces: W10837530)				$ 272.24
6A	WPW10310713		Grille, Vent (black)   (Replaces: W10310713)				$ 125.32
6B	W10310711		Grille, Vent (stainless)			Immediately	$ 227.62
8A	W10520333		Holder, Vent (black)		Appelez-nous	-
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.08
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 7.55
NI	8205948		Miscellaneous Parts, Hardware, Installation				$ 26.90
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10557525		Miscellaneous Parts, Harness, Headlamp And Turntable		Appelez-nous	-
NI	W10553851		Miscellaneous Parts, Harness, Magnetron And Transformer		Appelez-nous	-
NI	W10557527		Miscellaneous Parts, Harness, Vent Pcba		Appelez-nous	-
NI	W10530095		Miscellaneous Parts, Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
