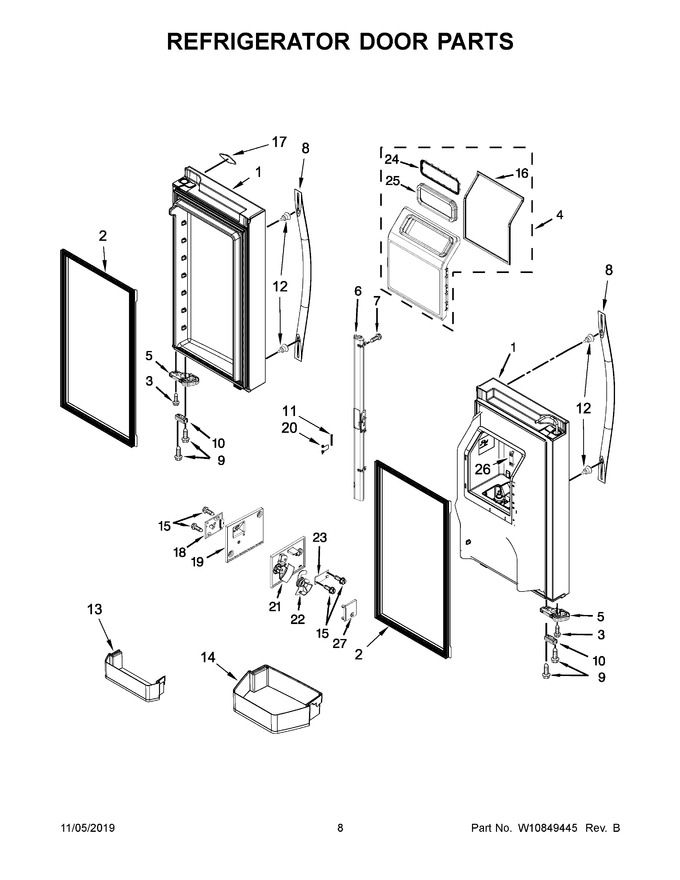

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10815690 | Door, Refrigerator (includes Item 2) Left Hand (black) (Replaces: W10634617) |
|
- | |||||
| 2 | W11544658 | Gasket, Door (black) (Replaces: W10873946) |
|
Immediately | $ 268.78 | ||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 12.94 | |||||
| 4 | W11176468 | Door, Ice |
|
- | |||||
| 5 | W10904595 | Latch, Door Closer (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 6 | W10733651 | Mullion, Door (black) |
|
- | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10883202 | Handle, Door (stainless) (Replaces: W10806905) |
|
$ 103.64 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | W10728186 | Trivet, 2 Liter |
|
- | |||||
| 14 | W10728195 | Bucket, Gallon |
|
- | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 44.50 | |||||
| 20 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 222.54 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W11134502) |
|
$ 48.97 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 1A | W10634623 | Door, Refrigerator (includes Item 2) Right Hand (black) |
|
- | |||||
| 5A | W11212164 | Latch, Door Closer (right Hand) (Replaces: W10712953) |
|
$ 17.59 |
