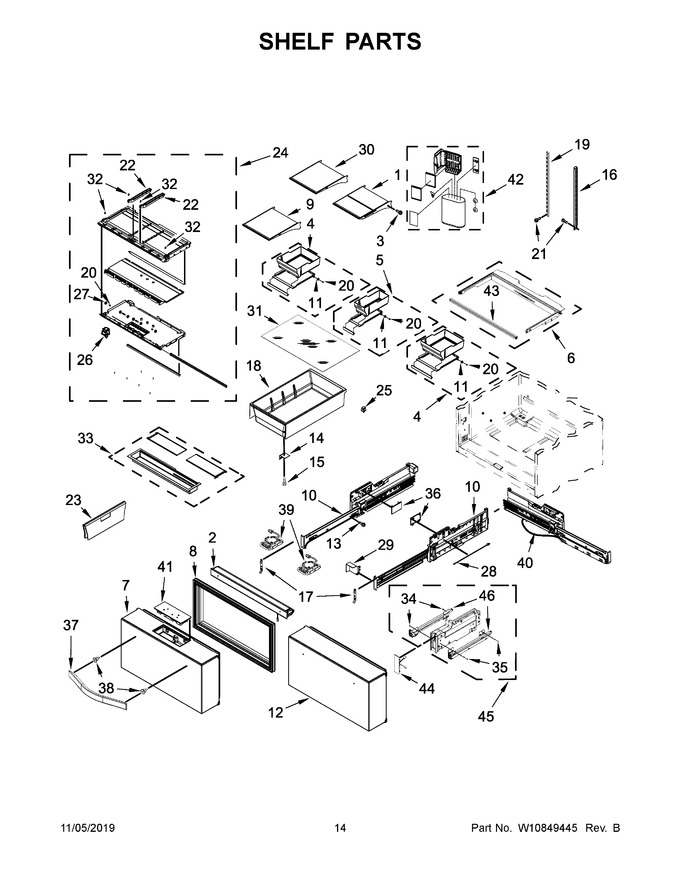

08 - Shelf Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10738974		Assembly, Tuck Shelf   (Replaces: W10738974)				$ 392.87
2	W10849120		Assembly, Secondary Mullion (black)		Appelez-nous	-
3	W10421495		Screw				$ 19.09
4	W10839369		Crisper, Medium   (Replaces: W10509272)				$ 199.20
5	W10509275		Crisper, Small				$ 160.15
6	W11127833		Assembly, Crisper Cover   (Replaces: W11037029)				$ 231.46
7	W10733261		Door, Pantry (includes Item 8) Left Hand (black)		Appelez-nous	-
8	W10832385		Gasket, Pantry Door (black)   (Replaces: W10712392)				$ 338.86
9	WPW10738981		Assembly, Shelf   (Replaces: W10738981)				$ 275.02
10	W11294518		Adapter, Pantry (left Hand)				$ 266.67
11	W10788795		Roller   (Replaces: W10530295)				$ 20.60
12	W10712688		Door, Pantry (includes Item 8) Right Hand (black)		Appelez-nous	-
13	WP98006631		Screw   (Replaces: 98006631)				$ 7.30
14	W10704335		Clip, Drawer Body				$ 15.34
15	W10664603		Screw				$ 14.47
16	W10719660		Ladder, Side				$ 196.61
17	W10732765		Clip, Glide Door				$ 18.74
18	W10882850		Drawer, Pantry   (Replaces: W10730609)		Appelez-nous	-
19	W10467461		Ladder, Center   (Replaces: W10719661)			Immediately	$ 52.31
20	67006692		Screw   (Replaces: 12991401)				$ 10.79
21	WPW10666373		Screw   (Replaces: W10666373)				$ 20.86
22	W10638123		Guide, Crisper				$ 292.10
23	W11026309		Divider, Pantry Pan   (Replaces: W10709891)				$ 47.36
24	W11215630		Assembly, Floor (includes Heater)		Appelez-nous	-
25	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
26	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 36.67
27	W10788795		Roller   (Replaces: W10530295)				$ 20.60
28	W11168403		Thermistor   (Replaces: W10549991)				$ 86.14
29	W10711645		Cover, Connector				$ 110.65
30	W11088991		Assembly, Lighted Shelf		Appelez-nous	-
31	W11038526		Glass, Crisper   (Replaces: W10893770)				$ 263.10
32	12702901		Pad, Glide		Appelez-nous	-
33	W10634634		Assembly, Secondary Mullion Bin		Appelez-nous	-
34	W10737730		Nut, Rivet				$ 15.14
35	W10737605		Screw				$ 10.55
36	W10518036		Cover, Side Adapter				$ 22.75
37	W10915399		Handle, Door (stainless)   (Replaces: W10696995)		Appelez-nous	-
38	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
39	W11683243		Assembly, Led Light Module   (Replaces: W10843353)			Immediately	$ 269.91
40	W11170612		Harness, Side Adapter   (Replaces: W10512203)			Immediately	$ 82.35
41	WPW10769075		Interface, User (black Shadow)   (Replaces: W10769075)				$ 475.35
42	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
43	W10530297		Support, Crisper Front				$ 161.23
44	W10830855		Assembly, Mullion Cover (black)   (Replaces: W10733545)				$ 105.89
45	W11294550		Assembly, Pantry Center Adapter				$ 125.33
46	W11242542		Glide, Compact (also Order Items 34 And 35) (left Hand)				$ 295.20
10A	W11294519		Adapter, Pantry (right Hand)				$ 194.17
46A	W11242573		Glide, Compact (also Order Items 34 And 35) (right Hand)   (Replaces: W11242572)				$ 291.31
