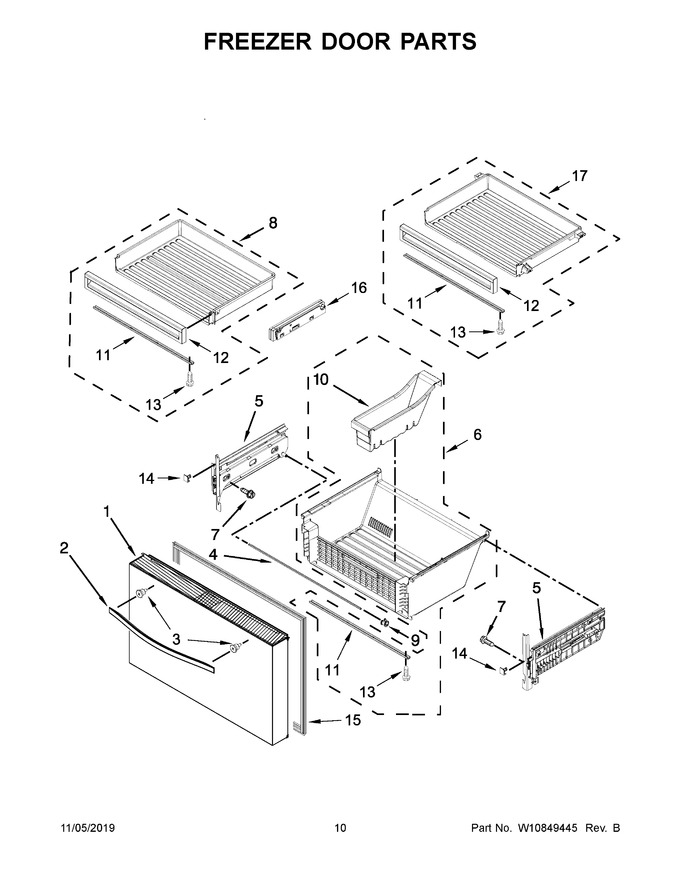

06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10815696		Door, Freezer (includes Item 15) (black)   (Replaces: W10634629)		Appelez-nous	-
2	W10883202		Handle, Door (stainless)   (Replaces: W10806905)				$ 103.64
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 98.10
5	W11668671		Assembly, Bracket (left Hand)   (Replaces: W10795770)			Immediately	$ 529.03
6	W10680631		Bin, Lower				$ 139.17
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	WPW10493169		Bin, Upper   (Replaces: W10493169)			Immediately	$ 150.69
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 11.39
10	W10507444		Divider, Lower				$ 62.14
11	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
12	W11175811		Front, Freezer Pan   (Replaces: W10488124)				$ 328.41
13	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
14	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 83.65
15	W10407215		Gasket, Door (black)   (Replaces: W10248748)				$ 317.99
16	W10850332		Assembly, Upper Pan Adapter (left Hand)   (Replaces: W10619219)				$ 141.59
17	W10858802		Assembly, Center Pan   (Replaces: W10704091)			Immediately	$ 302.45
14A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 86.71
16A	W10858092		Assembly, Upper Pan Adapter (right Hand)   (Replaces: W10619218)				$ 154.11
5A	W11668671		Assembly, Bracket (right Hand)   (Replaces: W10795768)			Immediately	$ 529.03
