SELECT A DIAGRAM

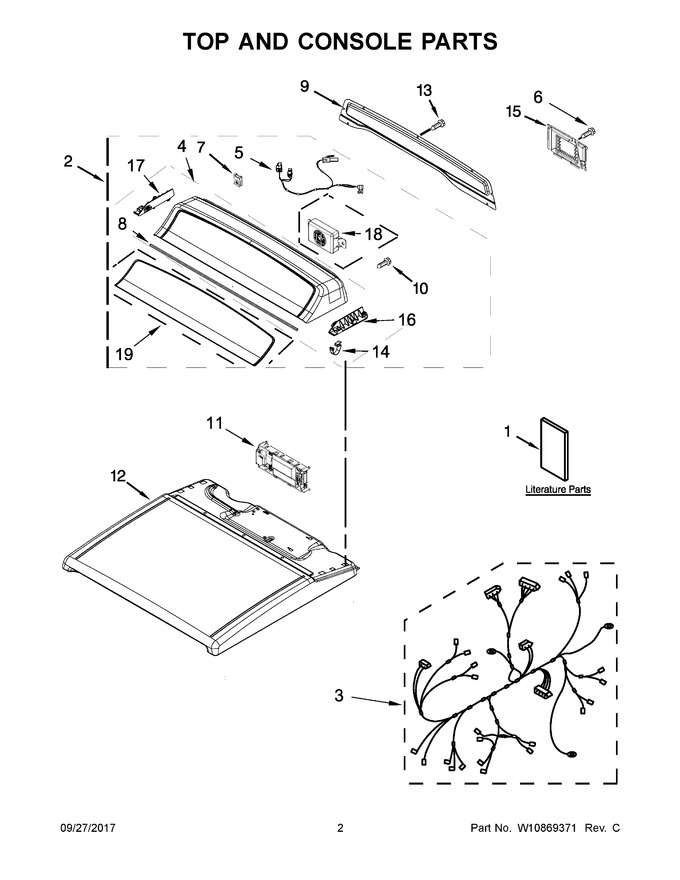

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11050696		Console Assembly (complete) (white)   (Replaces: W10642097)				$ 162.31
3	W10777439		Wiring Harness, Main		Appelez-nous	-
4	W11050696		Assembly, Console (white)   (Replaces: W10622070)				$ 162.31
5	W10593673		Harness, User Interface				$ 36.73
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.74
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.75
11	W10802464		Control, Electronic   (Replaces: W10739351)				$ 368.61
12	W11227373		Top (white)   (Replaces: W10508981)				$ 243.44
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 99.09
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 146.31
18	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 77.08
19	W10593648		Fascia				$ 501.36
1A	W10680139		Guide, Use And Care		Appelez-nous	-
1B	W10777449		Tech Sheet		Appelez-nous	-
1C	W10701469		Energy Guide		Appelez-nous	-
1D	W10720369		Quickstart Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
