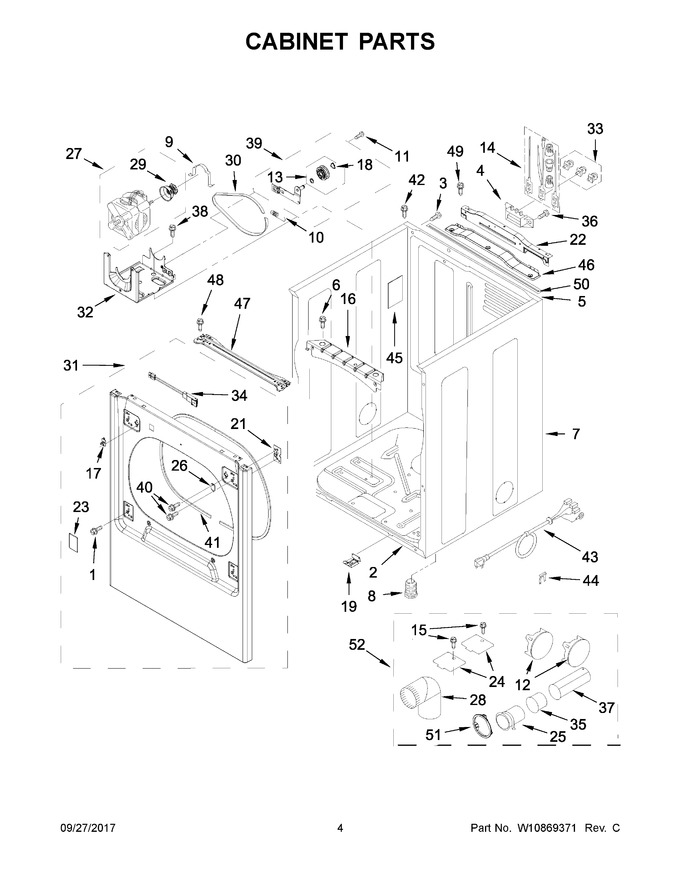

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488627		Screw   (Replaces: 342055)				$ 7.57
2	W10613683		Base, Cabinet				$ 191.97
3	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	W10824895		Panel, Rear				$ 296.29
6	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
7	W10633648		Panel, Side (white (without Cutout))				$ 273.88
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 71.98
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	W10636208		Screw		Appelez-nous	-
16	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
17	W11163826		Strike   (Replaces: W10778071)				$ 25.34
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
19	W10632347		Spacer Bracket, Lower		Appelez-nous	-
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.19
21	W10596959		Bracket, Hinge				$ 20.00
22	W10622391		Bracket, Rear Panel Upper		Appelez-nous	-
23	W10590953		Plug, Hinge (white)		Appelez-nous	-
24	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.96
25	W10587890		Pipe, Exhaust (medium)		Appelez-nous	-
26	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 28.28
27	W11105178		Assembly, Motor   (Replaces: W10806759)			Immediately	$ 319.29
28	WPW10416072		Elbow   (Replaces: W10416072)				$ 26.82
29	W11568637		Pulley, Motor   (Replaces: W10669447)				$ 82.46
30	W10849499		Belt, Drive   (Replaces: W10610882)			Immediately	$ 57.86
31	W10875869		Panel, Front (white)   (Replaces: W10861063)				$ 302.51
32	W10578053		Bracket, Motor Mounting				$ 87.83
33	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
34	W11036551		Switch, Door   (Replaces: W10459026)			Immediately	$ 70.71
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 78.95
36	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
37	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.19
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	W10850756		Screw   (Replaces: 8533974)				$ 7.76
43	W11710615		Cord, Power   (Replaces: W10712173)			Immediately	$ 82.45
44	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.40
45	W11409002		Pad, Foam   (Replaces: W10504381)				$ 22.63
46	W10651902		Bulkhead Bracket, Rear Panel (white)   (Replaces: W10672088)		Appelez-nous	-
47	W10722502		Brace, Cab And Seal Assembly		Appelez-nous	-
48	6-920119		Screw		Appelez-nous	-
49	W10704731		Screw		Appelez-nous	-
50	W10316616		Seal, Foam				$ 26.47
51	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 81.62
52	W10704365		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent				$ 128.38
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
