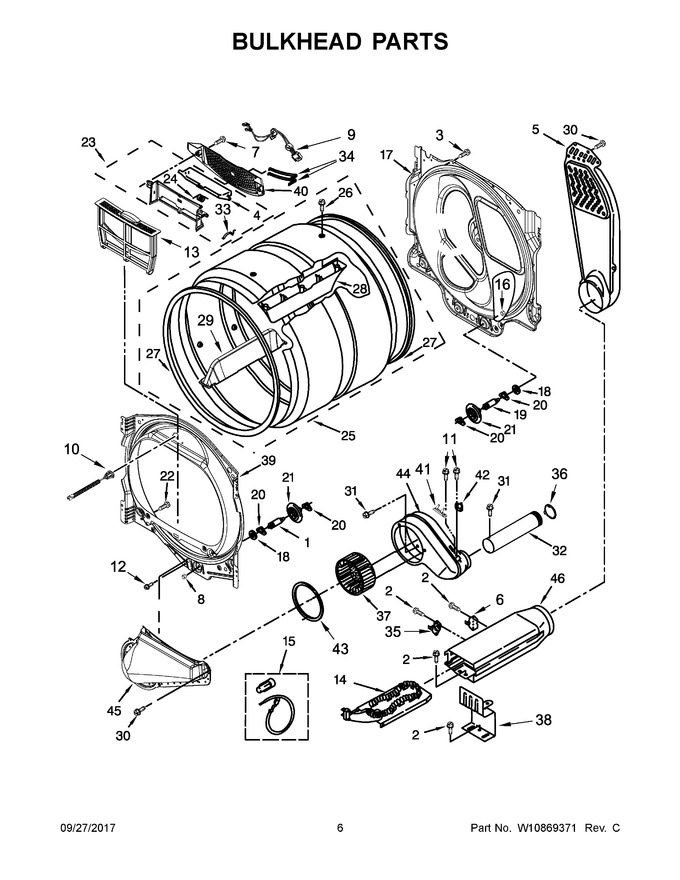

04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 4 | W11242876 | Door, Lint Screen (Replaces: W10608808) |
|
$ 105.01 | |||||
| 5 | W10834202 | Duct, Inlet Assembly |
|
- | |||||
| 6 | 280148 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 54.61 | ||||
| 7 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | W11161899 | Sensor Jumper, Moisture (Replaces: W10657328) |
|
$ 15.13 | |||||
| 10 | WPW10629046 | Assembly, Drum Light (Replaces: W10629046) |
|
$ 79.02 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 12 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 13 | W10859086 | Lint Screen (grey) (Replaces: W10608811) |
|
$ 71.64 | |||||
| 14 | W11025156 | Element, Heater (Replaces: W10608823) |
|
$ 328.11 | |||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 17 | W11135007 | Bulkhead, Rear (Replaces: W10638203) |
|
$ 246.27 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.02 | |||||
| 23 | W11242876 | Assembly, Outlet Housing (Replaces: W10608812) |
|
$ 105.01 | |||||
| 24 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 105.01 | |||||
| 25 | W10626460 | Assembly, Drum |
|
$ 218.51 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 27 | W11189144 | Seal, Drum (Replaces: W10664120) |
|
$ 21.61 | |||||
| 28 | W10767074 | Baffle, Drum High |
|
$ 35.99 | |||||
| 29 | W10767090 | Baffle, Drum Low |
|
$ 37.26 | |||||
| 30 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 31 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 32 | W10608817 | Pipe, Exhaust |
|
$ 73.41 | |||||
| 33 | W10608815 | Spring Clip, Lint Screen |
|
- | |||||
| 34 | W11165163 | Sensor, Electrode (Replaces: W10608814) |
|
$ 94.58 | |||||
| 35 | WP8557403 | Thermostat, High Limit (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 36 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 81.62 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 38 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 39 | W10861007 | Bulkhead, Front |
|
$ 211.22 | |||||
| 40 | W10608813 | Grille, Outlet |
|
$ 219.19 | |||||
| 41 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | W10868675 | Seal, Lint Duct |
|
$ 74.72 | |||||
| 44 | W11246350 | Housing, Blower (Replaces: W10667717) |
|
Immediately | $ 90.38 | ||||
| 45 | W10868982 | Lint Duct Assembly |
|
$ 187.03 | |||||
| 46 | W10802681 | Assembly, Weld Heater Box (Replaces: W10608837) |
|
Immediately | $ 129.67 |
