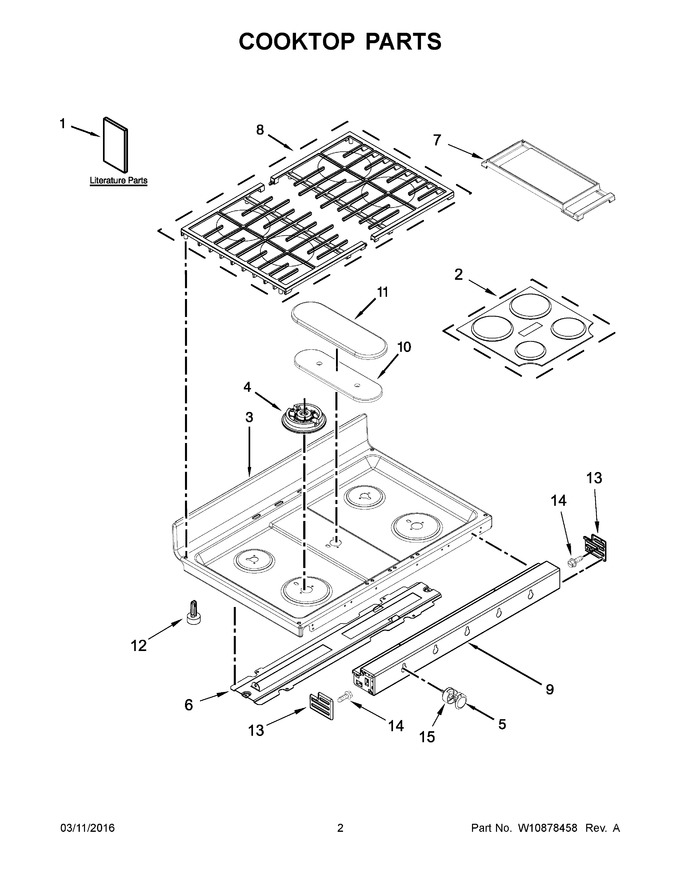

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694061 | Guide, Use & Care |
|
- | |||||
| 2 | WPW10299236 | Kit, Burner Cap (black) (Replaces: W10299236) |
|
Immediately | $ 225.49 | ||||
| 3 | W10401393 | Cooktop (stainless) (Replaces: W10330921) |
|
$ 437.46 | |||||
| 4 | WPW10406878 | Head, Burner (17.5k) (left Front) (Replaces: W10406878) |
|
$ 107.48 | |||||
| 5 | W11030413 | Knob, Control (stainless) (Replaces: W10643306) |
|
Immediately | $ 76.20 | ||||
| 6 | W10518258 | Bracket, Cooktop Support |
|
- | |||||
| 7 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 8 | W11673268 | Kit, Grate (Replaces: W10649701) |
|
$ 365.59 | |||||
| 9 | W11228125 | Panel, Manifold (stainless) (Replaces: W10711043) |
|
Immediately | $ 272.93 | ||||
| 10 | WPW10333445 | Base, Burner (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 | |||||
| 11 | WPW10171140 | Kit, Burner Cap (fish Burner Only) (black) (Replaces: W10171140) |
|
$ 168.47 | |||||
| 12 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 17.61 | ||||
| 13 | W10772020 | Endcap, Manifold (stainless (left)) |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 | ||||
| 15 | W10814133 | Bezel (stainless) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 13A | W10772019 | Endcap, Manifold (stainless (right)) |
|
- | |||||
| 1A | W10694070 | Instructions, Installation |
|
- | |||||
| 1B | W10647745 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 4A | WPW10406243 | Head, Burner (6k) (left Rear & Right Rear) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 4B | WPW10406797 | Head, Burner (12k) (right Front) (Replaces: W10406797) |
|
$ 92.91 | |||||
| 4C | WPW10336094 | Head, Burner (center) (Replaces: W10336094) |
|
$ 227.81 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 72.99 | ||||
| NI | W10745677 | Harness, Main |
|
$ 240.66 | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 231.69 | |||||
| NI | W10408058 | Harness, Spark |
|
$ 77.20 | |||||
| NI | W11172531 | Harness, Sensor & Locks (Replaces: W10745683) |
|
$ 119.20 | |||||
| NI | 8019P026-60 | Clip, Wire |
|
- | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | W11674161 | Kit, Lp Conversion (Replaces: W10591270) |
|
$ 115.66 | |||||
| NI | 8019P013-60 | Clip, Wire Lock |
|
$ 15.70 |
