Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 92.84

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

3 W11164063 Console (stainless)   (Replaces: W10645854) In-Stock Immediately $ 518.62

4 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

5 W11598459 Control, Electronic   (Replaces: W10873169) Special Order $ 383.99

6 W10692425 Assembly, User Interface (black) Special Order $ 897.07

7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

9 W10776098 Cover, Backguard Special Order $ 135.81

10 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 96.60

11 W11164063 Skin, Control Panel (stainless)   (Replaces: W10645842) In-Stock Immediately $ 518.62

12 WPW10292689 Cover, Wire Filler   (Replaces: W10292689) Special Order $ 95.35

1A W10319111 Support, Backguard (black (right)) Special Order $ 43.80

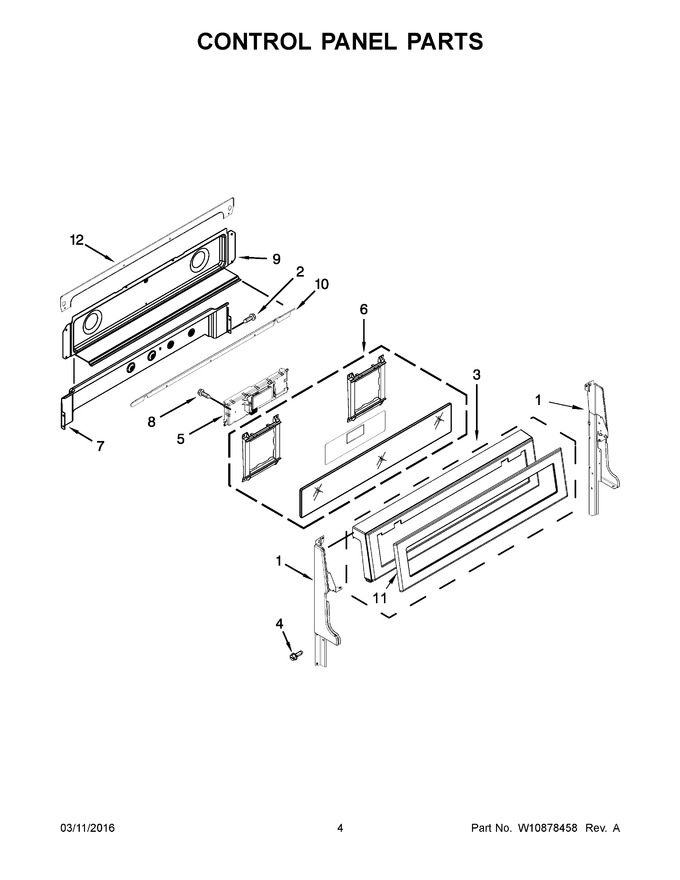

    View Diagram in Separate Window     Print Icon   Print Part List
