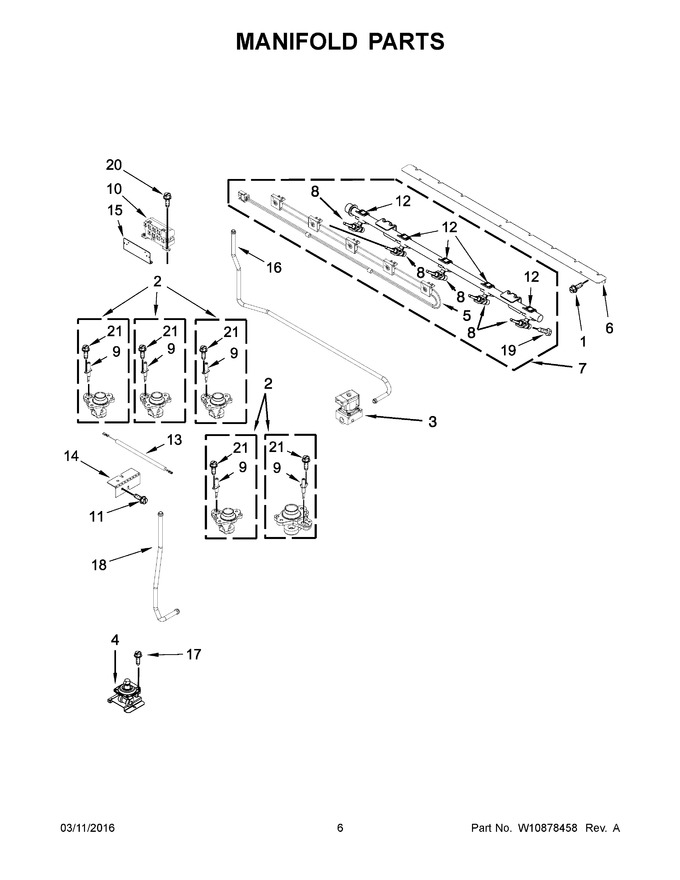

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
2	W11230935		Holder, Orifice (17k) (left Front)   (Replaces: W10643268)				$ 111.86
3	W10911971		Valve, Shut Off   (Replaces: W10368614)				$ 375.49
4	W10582429		Regulator, Pressure				$ 183.63
5	W11772398		Harness, Switch   (Replaces: W10664240)			Immediately	$ 86.33
6	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 108.19
7	W11684563		Assembly, Manifold   (Replaces: W10806878)				$ 318.66
8	W11740802		Valve (16k) (left Front)   (Replaces: W10718180)			Immediately	$ 95.22
9	W11208293		Electrode, Spark (left Front, Left Rear, Right Front, Right Rear)   (Replaces: W10565365)				$ 66.18
10	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 355.95
11	W10217535		Screw				$ 21.92
12	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
13	W10636384		Extension, Electrode				$ 140.05
14	W10324366		Holder, Electrode Extension		Appelez-nous	-
15	W10319059		Bracket, Spark Module		Appelez-nous	-
16	W10642388		Tubing (supply Shutoff To Manifold)		Appelez-nous	-
17	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.85
18	W10524331		Tubing (supply Regulator To Shutoff)				$ 48.73
19	W10295997		Screw, Valve				$ 7.32
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
2A	W10643269		Holder, Orifice (5k) (left Rear)				$ 117.98
2B	W11685612		Holder, Orifice (10k) (right Front)   (Replaces: W10643270)			Immediately	$ 85.69
2C	W10643271		Holder, Orifice (5k) (right Rear)				$ 124.13
2D	W10643272		Holder, Orifice (7k) (center)				$ 124.15
8A	W10718182		Valve (5k) (left Rear & Right Rear)				$ 282.01
8B	W10718181		Valve, Fish (right Front & Center)				$ 282.01
9A	W10637673		Electrode, Fish (center)				$ 67.90
