Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10463649 Shelf, Snack Pan   (Replaces: W10463649) Special Order $ 339.41

2 W11164152 Roller   (Replaces: W10278139) In-Stock Immediately $ 15.74

3 W10257334 Slide, Humidity Special Order $ 61.15

4 W10257332 Housing, Humidity Special Order $ 84.82

5 WPW10463651 Cover, Assembly   (Replaces: W10463651) Special Order $ 288.72

6 W10643315 Pan, Snack Appelez-nous -
7 W10643317 Pan, Meat Appelez-nous -
8 WPW10257246 Axle, Roller   (Replaces: W10257246) Special Order $ 36.54

9 W10643316 Pan, Crisper Appelez-nous -
10 WPW10463279 Shelf, Snack Pan   (Replaces: W10463279) Special Order $ 159.82

11 WPW10463259 Shelf Assembly   (Replaces: W10463259) Special Order $ 245.31

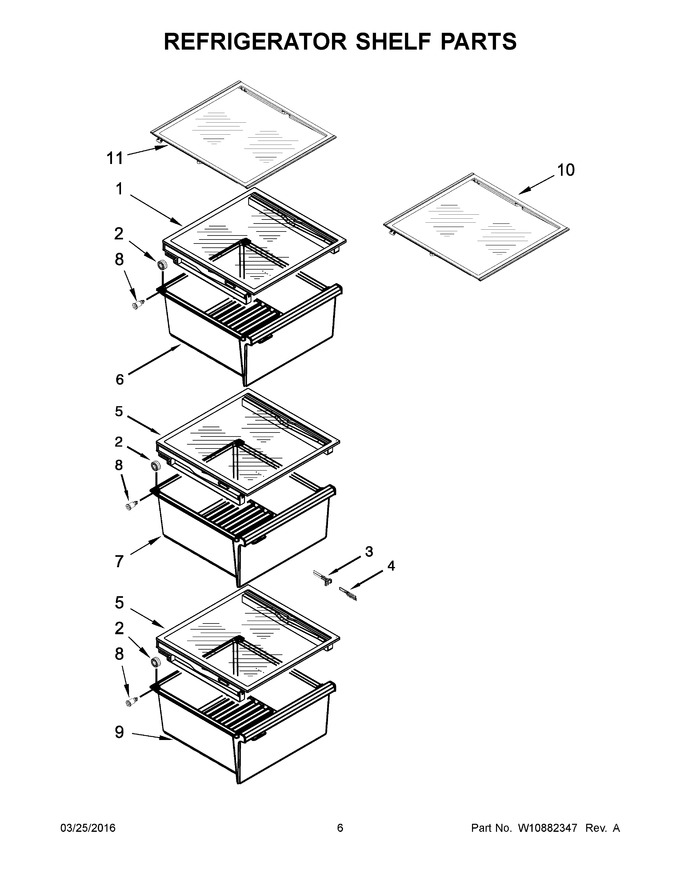

    View Diagram in Separate Window     Print Icon   Print Part List
