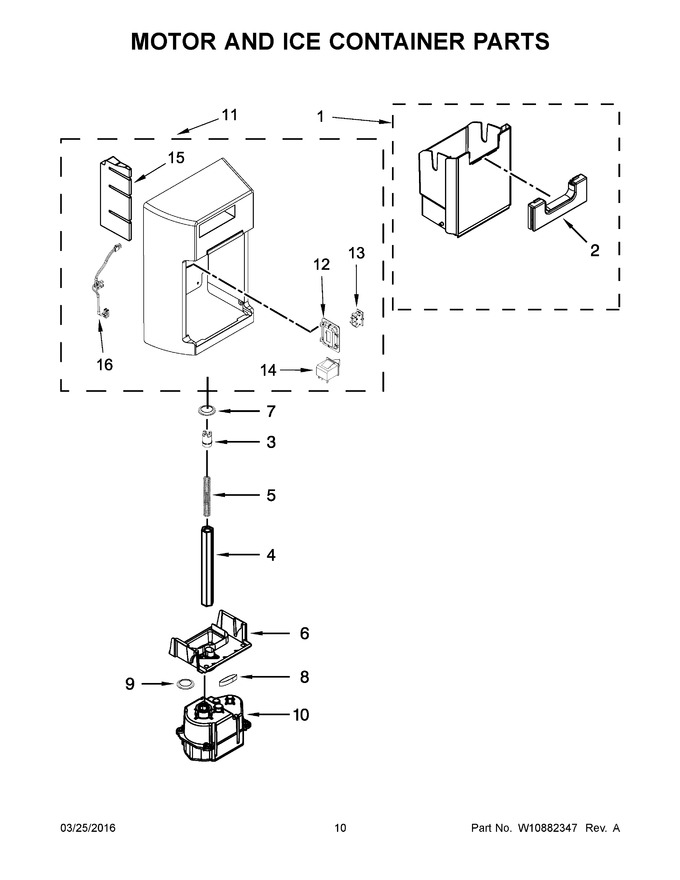

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Assembly, Ice Bin (Replaces: W10781441) |
|
Immediately | $ 362.91 | ||||
| 2 | W11652042 | Assembly, Latch (Replaces: W10258552) |
|
Immediately | $ 24.98 | ||||
| 3 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 41.04 | ||||
| 4 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 26.52 | ||||
| 5 | W10852956 | Spring, Coupling (Replaces: W10754509) |
|
Immediately | $ 21.40 | ||||
| 6 | WPW10293212 | Assembly, Mounting Plate (Replaces: W10293212) |
|
$ 128.67 | |||||
| 7 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 8 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 9 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 25.35 | |||||
| 10 | W11202789 | Motor, Dispenser (Replaces: W10225313) |
|
Immediately | $ 235.12 | ||||
| 11 | W11126296 | Cover, Container (Replaces: W10837661) |
|
$ 117.92 | |||||
| 12 | W10691248 | Plate, Switch |
|
$ 136.58 | |||||
| 13 | W10918003 | Rocker, Switch (Replaces: W10666871) |
|
$ 78.96 | |||||
| 14 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 36.66 | |||||
| 15 | W10749467 | Filler, Eps, Im Cover |
|
- | |||||
| 16 | W11684619 | Assembly, Wire Jumper Switch (Replaces: W10646076) |
|
$ 20.90 |
