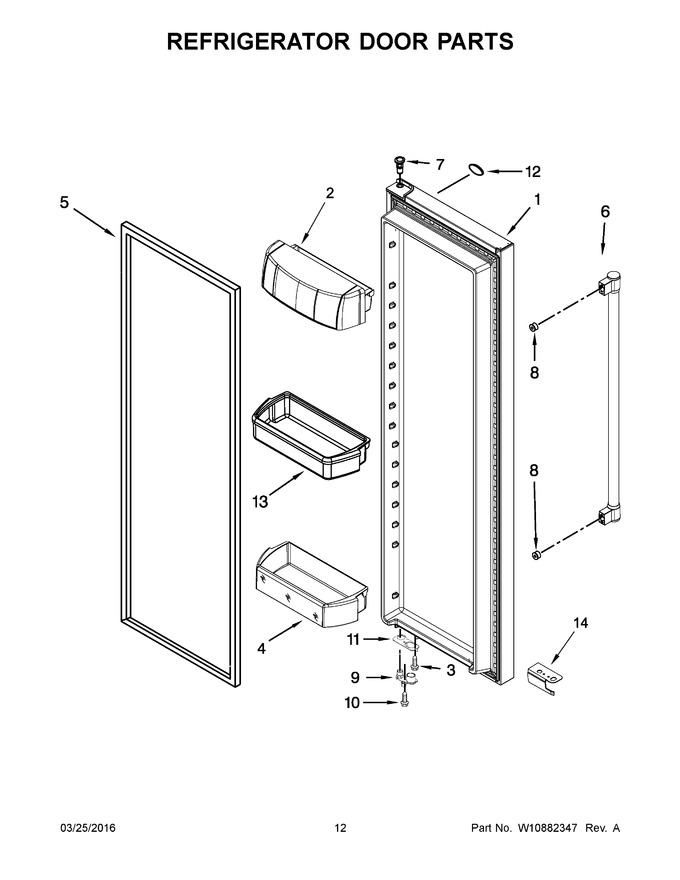

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10373134 | Refrigerator Door (includes Item 5) (white) |
|
- | |||||
| 2 | WPW10324760 | Door, Compartment Assembly (Replaces: W10324760) |
|
$ 85.60 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | W11223831 | Door Bin, Gallon (Replaces: W10672344) |
|
$ 161.02 | |||||
| 5 | WPW10247884 | Door Gasket, Magnetic (beige) (Replaces: W10247884) |
|
$ 322.97 | |||||
| 6 | WPW10643725 | Handle (stainless) (Replaces: W10643725) |
|
$ 313.17 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 9 | WPW10248011 | Door Closer, Upper Cam (white) (Replaces: W10248011) |
|
$ 12.93 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 80.24 | |||||
| 12 | WPW10612926 | Badge (grey) (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 13 | W11203895 | Door Bin, Shallow (Replaces: W10672337) |
|
$ 155.58 | |||||
| 14 | W10789144 | Cover, Door Stop (white) (Replaces: W10248013) |
|
$ 19.38 | |||||
| 14A | W10257216 | Cover, Door Stop (black) |
|
- | |||||
| 14B | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 31.71 | ||||
| 1A | W10373135 | Refrigerator Door (includes Item 5) (black) |
|
- | |||||
| 1B | W10638103 | Refrigerator Door (includes Item 5) (stainless) |
|
- | |||||
| 5A | WPW10249912 | Door Gasket, Magnetic (black) (Replaces: W10249912) |
|
$ 329.18 | |||||
| 5B | W10355582 | Door Gasket, Magnetic (grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 9A | WPW10257201 | Door Closer, Upper Cam (black) (Replaces: W10257201) |
|
$ 12.93 | |||||
| 9B | WPW10257203 | Door Closer, Upper Cam (grey) (Replaces: W10257203) |
|
$ 12.96 |
