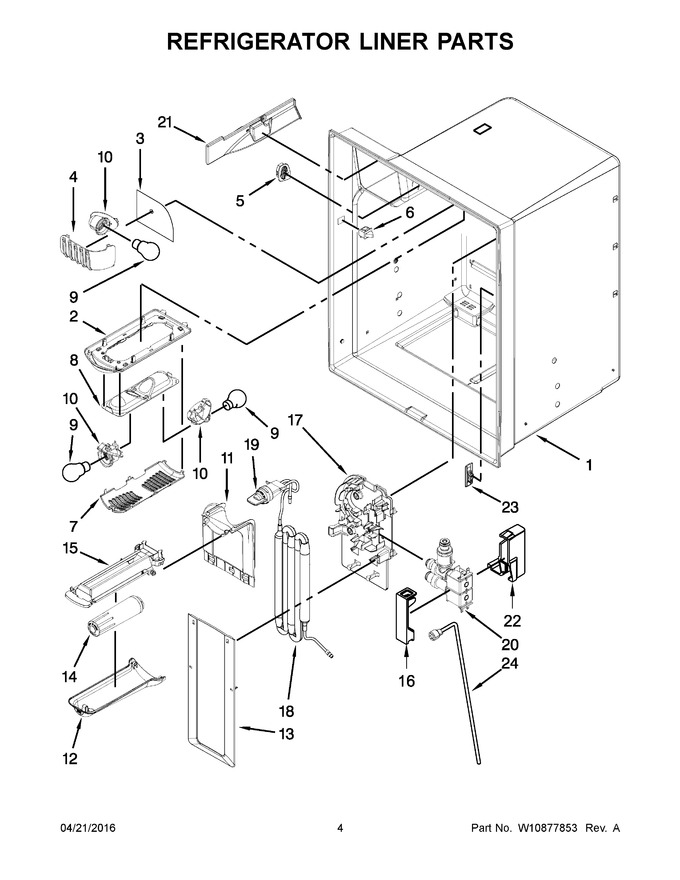

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464777 | Module, Light |
|
$ 41.40 | |||||
| 3 | 12691605 | Foil, Light |
|
- | |||||
| 4 | 12921801 | Cover, Light |
|
$ 22.64 | |||||
| 5 | W10555984 | Assembly, Air Grille |
|
Immediately | $ 42.09 | ||||
| 6 | W11396033 | Switch, Rocker (Replaces: 12466103) |
|
Immediately | $ 37.30 | ||||
| 7 | 12905902 | Cover, Light |
|
- | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 43.24 | ||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.87 | ||||
| 11 | 12960101 | Cover, Upper Water Tank |
|
$ 134.01 | |||||
| 12 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 118.37 | ||||
| 13 | 67006329 | Cover, Lower Water Tank (Replaces: 12960001) |
|
$ 198.95 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: W10735404) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 105.39 | ||||
| 16 | W10118194 | Lid, Enclosure |
|
- | |||||
| 17 | WPW10334463 | Bracket, Water Tank And Valve (Replaces: W10334463) |
|
$ 62.69 | |||||
| 18 | W11346622 | Assembly, Water Tank And Head (includes Bypass Cartridge) (Replaces: W10657242) |
|
Immediately | $ 146.52 | ||||
| 19 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 20 | WPW10312696 | Valve, Water Inlet (Replaces: W10312696) |
|
Immediately | $ 172.73 | ||||
| 21 | W10165861 | Cover, Wire (Replaces: 12960902) |
|
$ 32.78 | |||||
| 22 | W10118193 | Enclosure, Water Valve Connector |
|
$ 88.80 | |||||
| 23 | 12987301 | Cover, Chiller Vent |
|
$ 13.73 | |||||
| 24 | WPW10444032 | Waterline, Cabinet (w/nut) (Replaces: W10444032) |
|
$ 125.58 |
