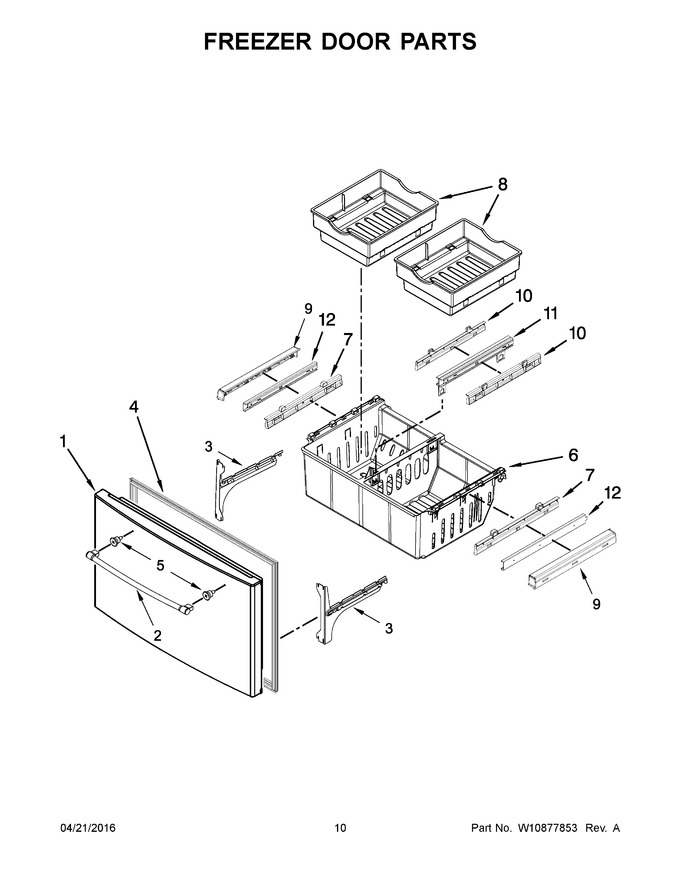

06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977881WQ		Door, Freezer (white)   (Replaces: 12977881W)				$ 853.19
2	W10879688		Handle, Door (stainless)   (Replaces: W10840878)				$ 225.39
3	WPW10330991		Bracket, Door Slide (left Hand)   (Replaces: W10330991)				$ 164.31
4	W10443323		Gasket, Door (white)				$ 353.83
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	W10166235		Bin, Lower   (Replaces: 13036201SP)				$ 184.72
7	W10166742		Adapter, Outer Bin   (Replaces: 12925403SP)				$ 98.12
8	WP12924903		Bin, Upper (left Hand)   (Replaces: 12924903)				$ 132.30
9	W10826788		Retainer, Glide (left Hand)				$ 57.50
10	12925404SP		Adapter, Center Bin				$ 45.32
11	WPW10235357		Assembly, Bracket And Glide   (Replaces: W10235357)			Immediately	$ 330.98
12	WPW10235367		Glide, Drawer   (Replaces: W10235367)				$ 313.43
1A	12977881BQ		Door, Freezer (black)   (Replaces: 12977881B)				$ 959.60
1B	W10854491		Door, Freezer (stainless)   (Replaces: W10842620)				$ 1,378.02
3A	WPW10330993		Bracket, Door Slide (right Hand)   (Replaces: W10330993)				$ 166.09
4A	W10436254		Gasket, Door (black)				$ 272.93
4B	WPW10443324		Gasket, Door (grey)   (Replaces: W10443324)			Immediately	$ 338.08
8A	W10166236		Bin, Upper (right Hand)   (Replaces: 13036302)				$ 257.27
9A	W10826789		Retainer, Glide (right Hand)		Appelez-nous	-
