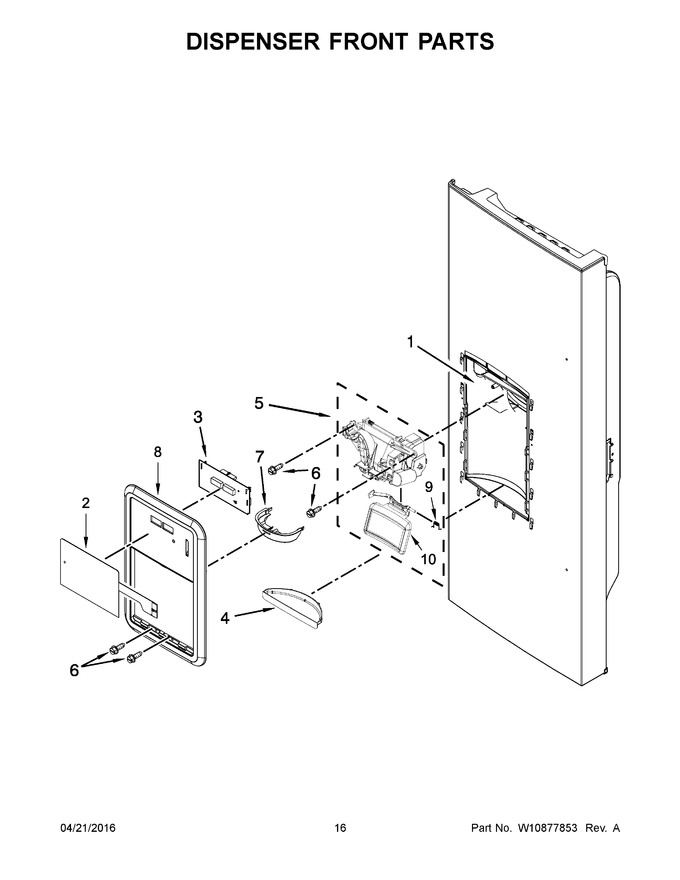

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10731566 | Keyboard (white) |
|
$ 260.37 | |||||
| 3 | W10799818 | Board, Display (Replaces: W10708470) |
|
Immediately | $ 299.78 | ||||
| 4 | W10445057 | Sump, Dispenser (white) |
|
$ 64.38 | |||||
| 5 | WP13005703W | Chute, Ext/yoke (includes Switch) (white) (Replaces: 13005703W) |
|
$ 323.10 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 55.57 | |||||
| 8 | W10142272 | Facade, Dispenser (white) |
|
$ 266.28 | |||||
| 9 | WP12565502 | Spring, Chute Door (Replaces: 12565502) |
|
$ 8.43 | |||||
| 10 | W10170831 | Assembly, Yoke (includes Pad) (white) |
|
$ 83.80 | |||||
| 10A | W10170832 | Assembly, Yoke (includes Pad) (black) |
|
$ 85.18 | |||||
| 10B | WPW10185233 | Assembly, Yoke (includes Pad) (stainless) (Replaces: W10185233) |
|
$ 85.43 | |||||
| 2A | W10731567 | Keyboard (black) |
|
$ 248.19 | |||||
| 2B | W10731568 | Keyboard (stainless) |
|
Immediately | $ 257.67 | ||||
| 4A | W10445056 | Sump, Dispenser (black) |
|
$ 66.98 | |||||
| 4B | W11167053 | Sump, Dispenser (grey) (Replaces: W10445053) |
|
Immediately | $ 73.04 | ||||
| 5A | WP13005703B | Chute, Ext/yoke (includes Switch) (black) (Replaces: 13005703B) |
|
$ 324.63 | |||||
| 5B | WP13005705 | Chute, Ext/yoke (includes Switch) (grey) (Replaces: 13005705) |
|
Immediately | $ 329.03 | ||||
| 8A | WPW10164982 | Facade, Dispenser (black) (Replaces: W10164982) |
|
$ 234.44 | |||||
| 8B | WPW10310688 | Facade, Dispenser (stainless) (Replaces: W10310688) |
|
$ 232.13 |
