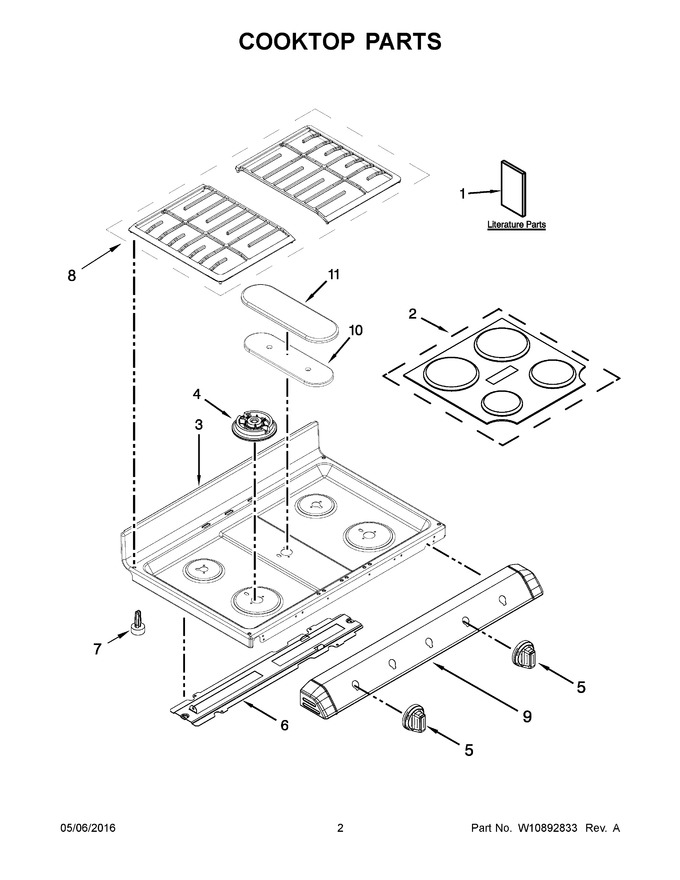

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10748907		Guide, Use & Care		Appelez-nous	-
2	WPW10299233		Kit, Burner Cap (black)   (Replaces: W10299233)				$ 200.94
3	W10336330		Cooktop (black)   (Replaces: W10260169)				$ 400.07
4	WPW10406878		Head, Burner (17.5k) (left Front)   (Replaces: W10406878)				$ 102.36
5	W10696522		Knob, Control (stainless)				$ 136.45
6	W10518258		Bracket, Cooktop Support		Appelez-nous	-
7	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 16.77
8	WPW10338214		Kit, Grate (black)   (Replaces: W10338214)				$ 329.45
9	W11236290		Panel, Manifold (stainless)   (Replaces: W10696087)		Appelez-nous	-
10	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 104.81
11	WPW10171140		Kit, Fish Burner (black)   (Replaces: W10171140)				$ 160.45
1A	W10722849		Instructions, Installation		Appelez-nous	-
1B	W10647745		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
4A	WPW10406243		Head, Burner (6k) (left Rear & Right Rear)   (Replaces: W10406243)			Immediately	$ 37.22
4B	WPW10406797		Head, Burner (right Front)   (Replaces: W10406797)				$ 88.49
4C	WPW10336094		Head, Burner (center)   (Replaces: W10336094)				$ 216.42
NI	W10745669		Harness, Main		Appelez-nous	-
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 220.66
NI	W11172531		Harness, Sensor & Locks   (Replaces: W10745683)				$ 113.52
NI	W10408058		Harness, Spark				$ 73.52
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	8019P026-60		Clip, Wire		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
