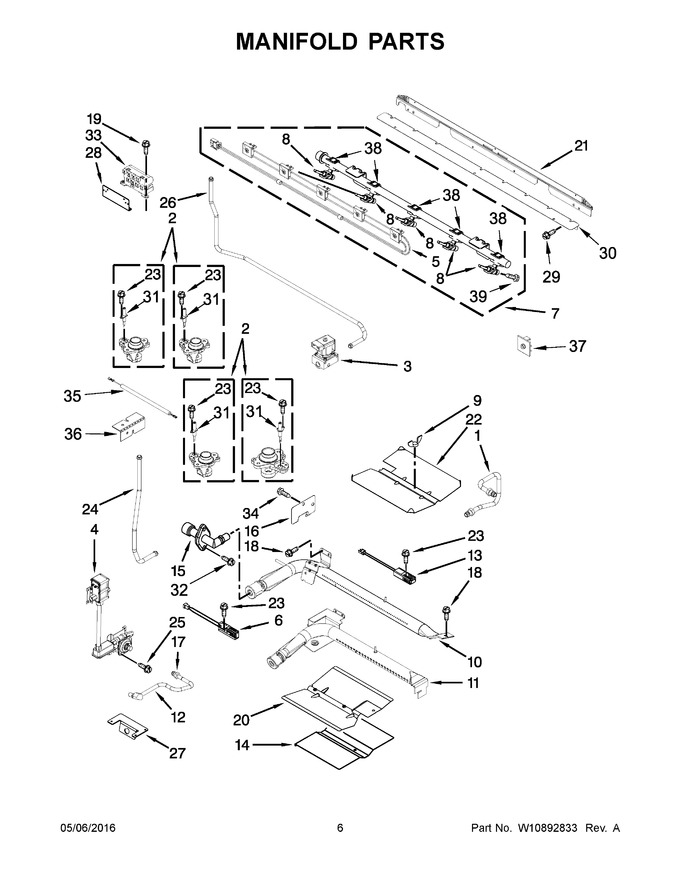

04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319002		Tubing, Broil				$ 181.70
2	W10638882		Holder, Orifice (16k) (left Front)				$ 124.27
3	W10911971		Valve, Shut Off   (Replaces: W10368614)				$ 357.61
4	WPW10546238		Valve/regulator   (Replaces: W10546238)			Immediately	$ 317.96
5	WPW10204718		Harness, Switch   (Replaces: W10204718)				$ 210.45
6	WPW10324738		Ignitor, Gas   (Replaces: W10324738)			Immediately	$ 313.38
7	WPW10204705		Assembly, Pipe Manifold   (Replaces: W10204705)			Immediately	$ 331.88
8	WPW10206288		Valve (16k) (left Front & Right Front)   (Replaces: W10206288)			Immediately	$ 111.88
9	7103P030-60		Nut, Wing				$ 7.08
10	W11245221		Burner, Broiler   (Replaces: W10315768)				$ 211.70
11	W11174122		Burner, Bake   (Replaces: W10407912)				$ 203.33
12	W10342662		Orifice, Bake (upper)				$ 200.08
13	W11596211		Ignitor, Bake   (Replaces: 7432P143-60)			Immediately	$ 93.36
14	W10298865		Shield, Bake		Appelez-nous	-
15	W10292293		Fitting, Broiler				$ 99.21
16	4005F421-45		Cover, Ignitor Wire		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 8.94
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
19	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.02
20	W10272528		Baffle, Bake				$ 280.65
21	WPW10276470		Bracket, Manifold Rear Cover   (Replaces: W10343062)				$ 85.08
22	3601F358-45		Baffle, Broil Burner				$ 242.53
23	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
24	W10524331		Tubing (supply Regulator To Shutoff)				$ 44.56
25	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.44
26	W10295055		Tubing (supply Shutoff To Manifold)				$ 197.33
27	W11756017		Bracket, Orifice   (Replaces: W10272520)		Appelez-nous	-
28	W10319059		Bracket, Spark Module		Appelez-nous	-
29	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.19
30	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 103.04
31	W11208293		Electrode, Spark   (Replaces: W10565365)				$ 63.03
32	WP3387230		Screw   (Replaces: 7101P502-60)			Immediately	$ 8.54
33	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 339.00
34	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
35	W10636384		Extension, Electrode				$ 133.38
36	W10324366		Holder, Electrode Extension		Appelez-nous	-
37	W10631502		Grommet, Valve Stem		Appelez-nous	-
38	98017516		Saddle, Bracket				$ 89.08
39	98017517		Screw		Appelez-nous	-
12A	W10342661		Orifice, Bake (lower)				$ 190.13
2A	W10638851		Holder, Orifice (5k) (left Rear)				$ 127.02
2B	W10638866		Holder, Orifice (10k) (right Front)				$ 123.63
2C	W10638853		Holder, Orifice (5k) (right Rear)				$ 125.33
2D	W10638859		Holder, Orifice (7.3k) (center)				$ 117.71
31A	W10637673		Electrode, Fish				$ 61.36
8A	WPW10206287		Valve (5k) (left Rear & Right Rear)   (Replaces: W10206287)			Immediately	$ 198.14
8B	WPW10298678		Valve, Fish (center)   (Replaces: W10298678)			Immediately	$ 200.90
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11674161		Kit, Lp Conversion   (Replaces: W10591270)				$ 110.00
NI	W10324646		Insulation, Orifice				$ 86.84
