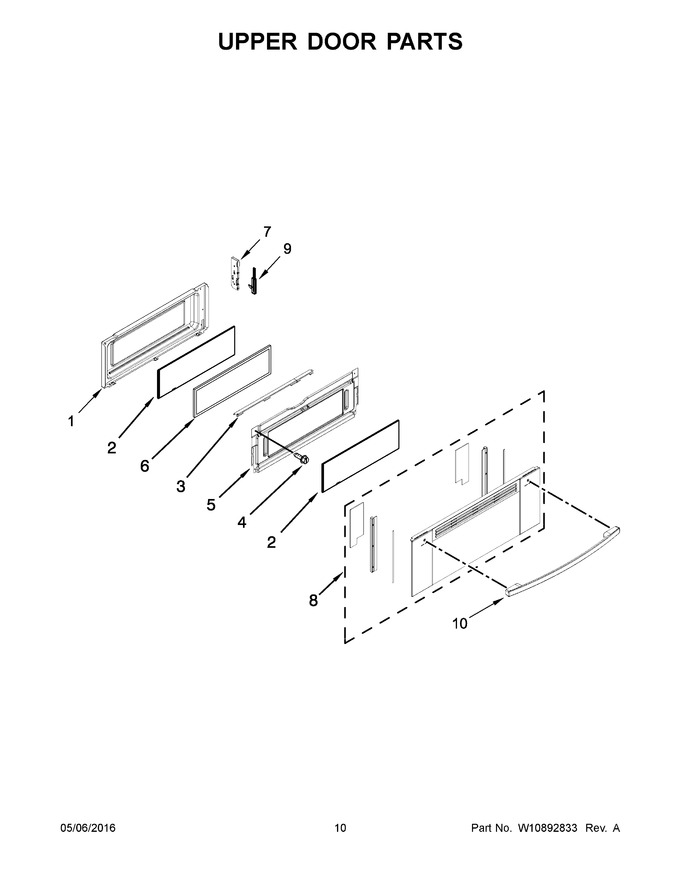

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11051040		Lining, Door   (Replaces: W10485720)				$ 286.67
2	W11132120		Glass, Inner   (Replaces: W10272707)				$ 170.79
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 163.74
4	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.19
5	W10485723		Retainer, Insulation				$ 240.40
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 94.46
7	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
8	W10677219		Assembly, Door (stainless)   (Replaces: W10674762)		Appelez-nous	-
9	WPW10485733		Hinge, Door (left)   (Replaces: W10485733)			Immediately	$ 59.59
10	WPW10144883		Assembly, Handle (stainless)   (Replaces: W10144883)				$ 240.63
9A	WPW10485732		Hinge, Door (right)   (Replaces: W10485732)			Immediately	$ 55.76
